Procedures

Evaporator Temperature Sensor-G308-, Removing And Installing

CAUTION: Before beginning repairs on the electrical system:

- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

Removing
- Remove lower instrument panel trim:

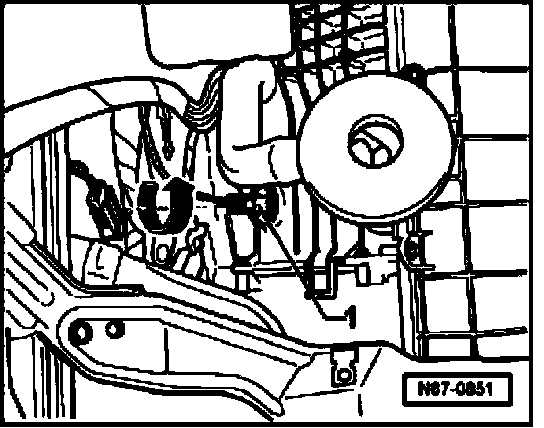

- Turn temperature sensor -1- in direction of -arrow- approx. 90 degrees
- Disconnect electrical connection.-A-.
- Remove sensor.

Installing
- Install in reverse order of removal.
