Evaporator Temperature Sensor / Switch: Description and Operation

Electrical Components Not Installed On The Refrigerant Circuit

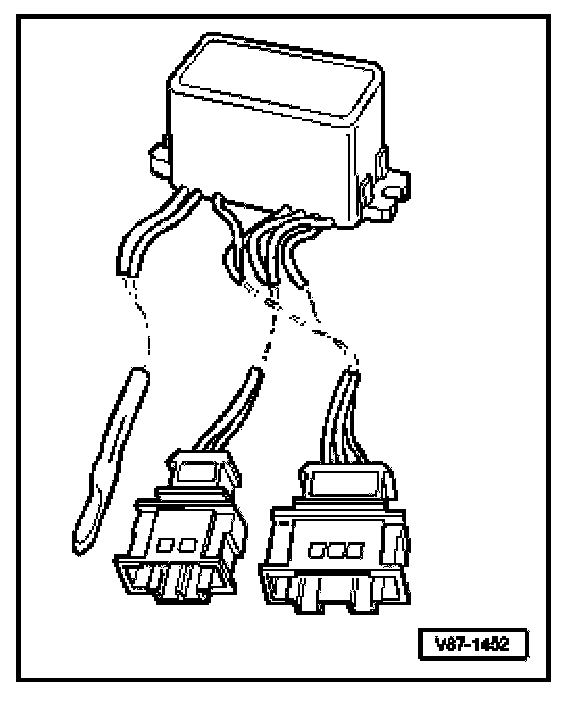

A/C Programmer J127







This programmer switches off the refrigerant flow through the 2nd evaporator when the temperature on the cooling ribs of the 2nd evaporator sinks to the freezing point for water (ice-up safeguard).
