FN 44 Brake Caliper, Servicing

FN 44 brake caliper, servicing

Note:
^ When carrying out repairs, install all parts supplied in repair kit.
^ Only use mineral spirits to clean brake parts.
^ Apply thin coat of assembly paste G 052 150 A2 to brake cylinders, pistons and seals.

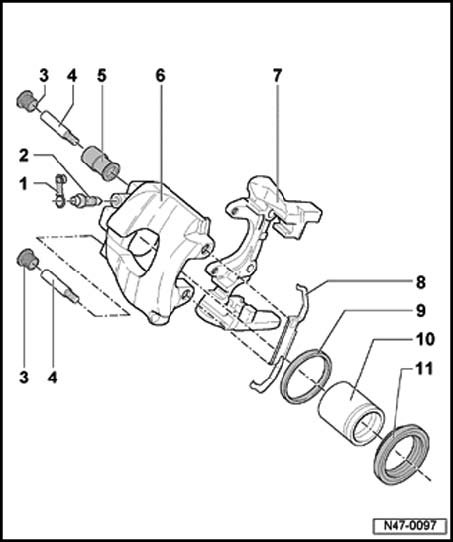

1 - Dust cap
^ Push onto bleed valve
^ Secures brake pad wear indicator wiring

2 - Bleeder valve, 12 Nm
^ Apply a thin coat of assembly paste G 052 150 A2 to the threads before screwing in.

3 - Caps
^ Insert into bushing

4 - Guide pins, 30 Nm

5 - Bushing
^ Insert into brake caliper

6 - Brake caliper

7 - Carrier
^ Fastened with brake caliper

8 - Retaining spring
^ Press under the carrier and insert into both bores of the brake caliper

9 - Seal ring

10 - Piston

11 - Protective cap
^ Do not damage when inserting piston
