ABS System Components on Rear Axle, Removing and Installing

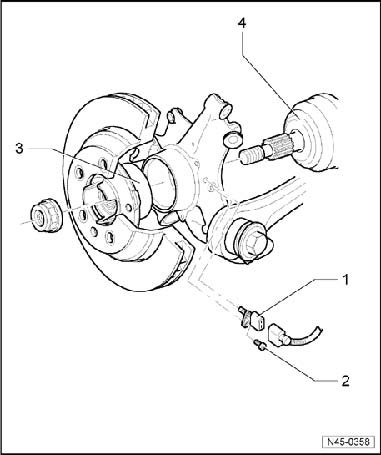

ABS system components on rear axle, removing and installing





1 - ABS wheel speed sensor
^ Before inserting sensor, clean inner surface of mounting hole and coat with Polycarbamide grease G 052 142 A2
^ Removing and installing Speed sensor on rear axle, removing and installing

2 - Hex socket head bolt, 8 Nm

3 - Wheel bearing/hub unit
^ The ABS sensor ring is installed in the wheel hub

4 - Drive axle
