Console Lamp: Service and Repair

Center Armrest Illumination L157, Removing And Installing

Removing:

CAUTION:
- Switch off all electrical consumers. - Switch off ignition and remove ignition key.
- When removing switches, trim, covers or displays, prevent damage to visible areas by always applying appropriate tape to area surrounding the component, and the tools being used (screwdrivers, wedges etc.).







- Carefully pry out light using screwdriver.
- Release and disconnect electrical connection.

Bulb, replacing:

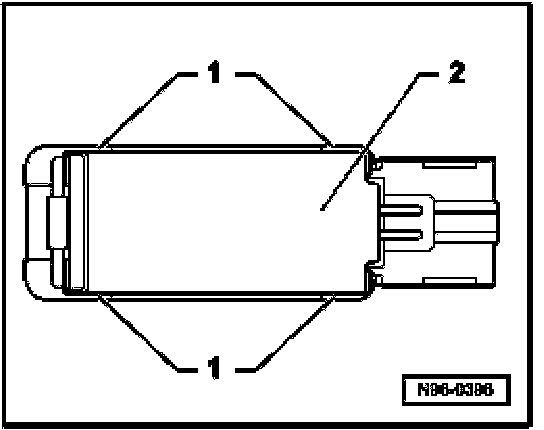

- Release retainers -1 - and remove heat shield - 2 - from lens.

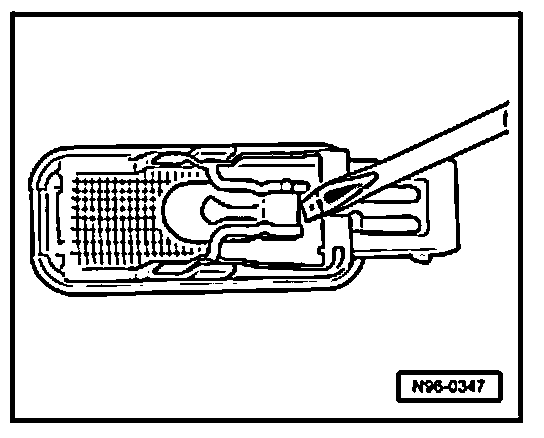

- Carefully pry bulb out of holder.
- Replace bulb (12 V, 5 W).

Installing:
Install in reverse order of removal.
