EVAP Canister System, Assembly Overview

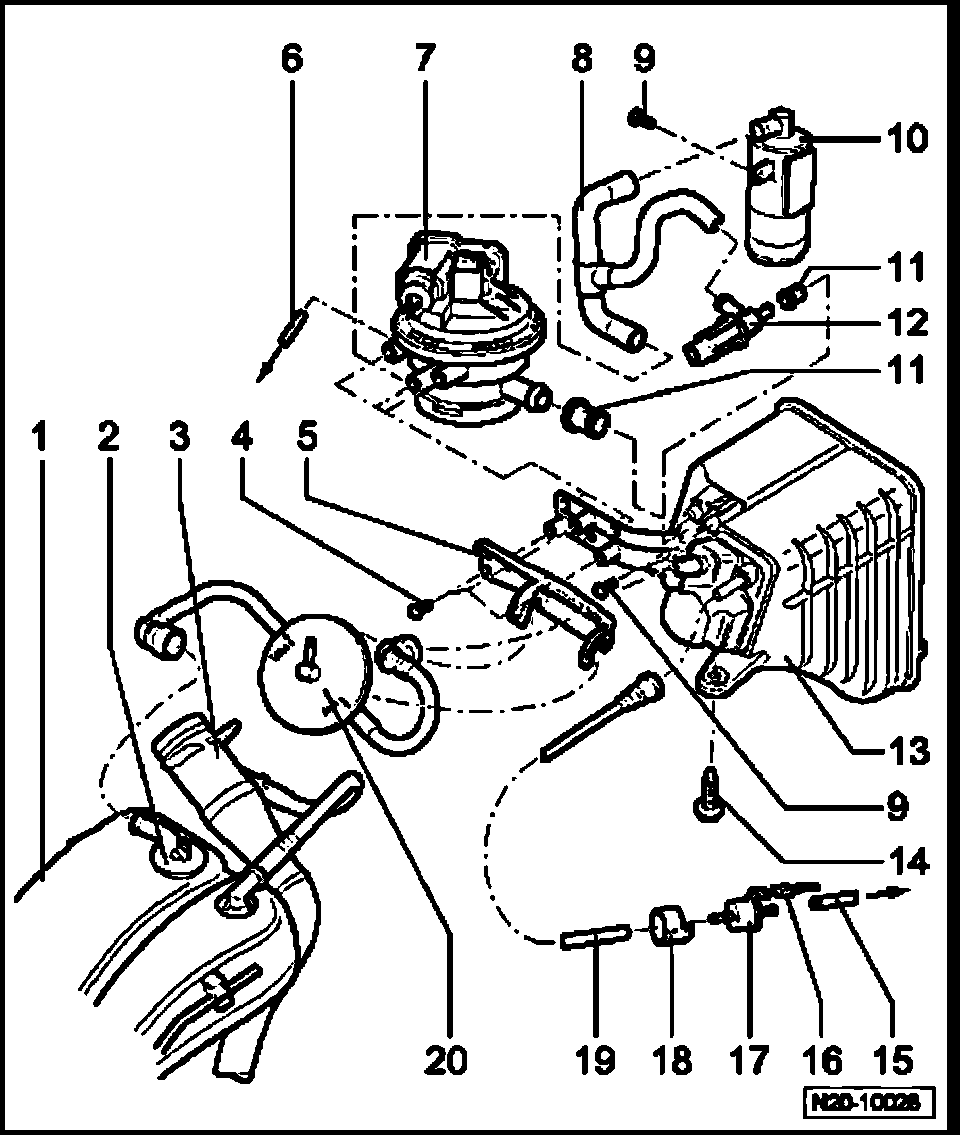

EVAP canister system, assembly overview

CAUTION: During all repair procedures on the fuel tank, be aware of the following:
- Make sure that the Ground (GND) (-) strap between the fuel filler tube and body is securely fastened, to prevent electrostatic charging.
- Route all the various lines (e.g. for fuel, EVAP system, or vacuum) and electrical wiring so that the original routing positions are restored.
- Ensure sufficient clearance to all moving or hot components.







1. Reservoir
- Right side
2. Gravity valve
3. Fuel filler tube
- With connection for Ground (GND) strap to body
4. 5 Nm
5. Bracket
6. Vent line
- Ensure seated tightly
7. Leak Detection Pump (LDP) V144
- Black connector, 3-pin
8. Connecting hose
- Between air filter, Leak Detection Pump (LDP) V144 and Evaporative Emission (EVAP) Canister Purge Solenoid Valve 2 N115
- Ensure seated tightly
9. 5 Nm
10. Air filter housing
- Clean if soiled
11. Rubber bushing
- Note installation position
- Replace if damaged
12. Evaporative Emission (EVAP) Canister Purge Solenoid Valve 2 N115
- Black connector, 2-pin
13. EVAP canister
- Component location: in front right wheelhousing
14. 9 Nm
15. Vent line
- Ensure seated tightly
16. Connector
- Black, 2-pin
17. Evaporative Emission (EVAP) Canister Purge Regulator Valve N80
- Note installation position
18. Rubber bracket
- Note installation position
19. Vent line
- Ensure seated tightly
20. Pressure retention valve
- Checking

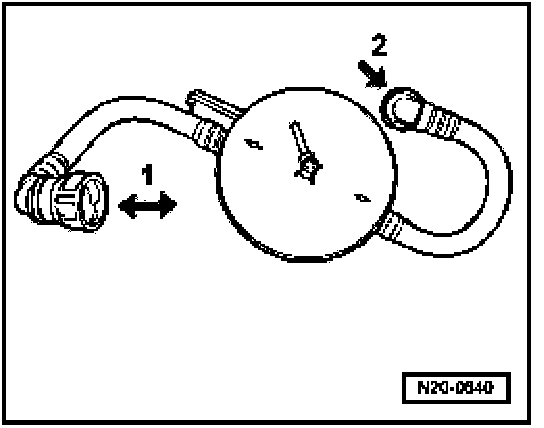

Checking pressure retention valve on EVAP canister
The pressure retention valve is opened via the gravity valve (on expansion tank) for flow in both directions. ( - Arrow 1 - is the side toward the expansion tank).

On the other side, flow is possible in one direction only, to the EVAP canister side - arrow 2 -.
