Home
>>
Volkswagen
>>
2005
>>
Touareg (7LA) V6-3.2L (BMX)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Locations
>>

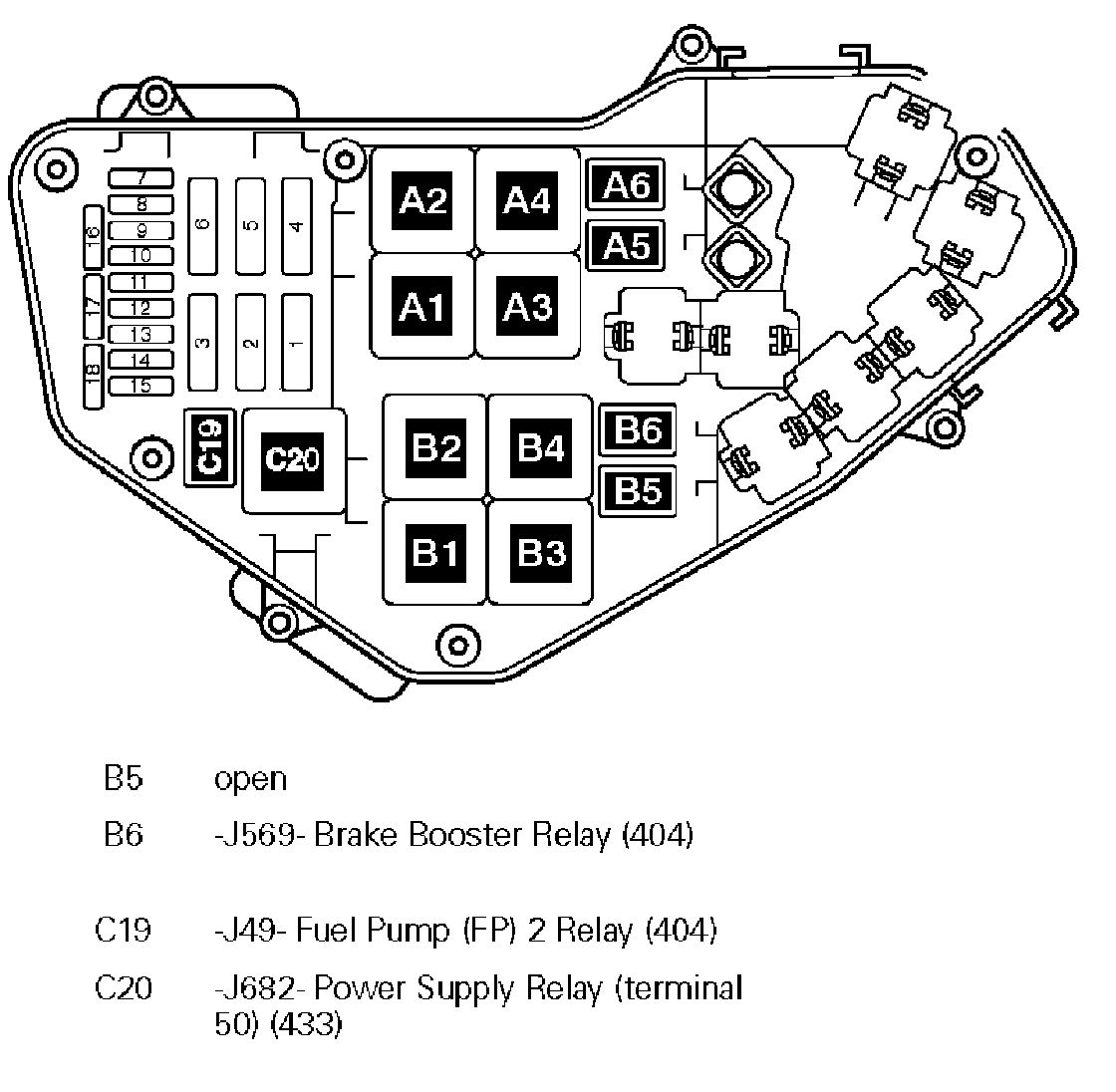

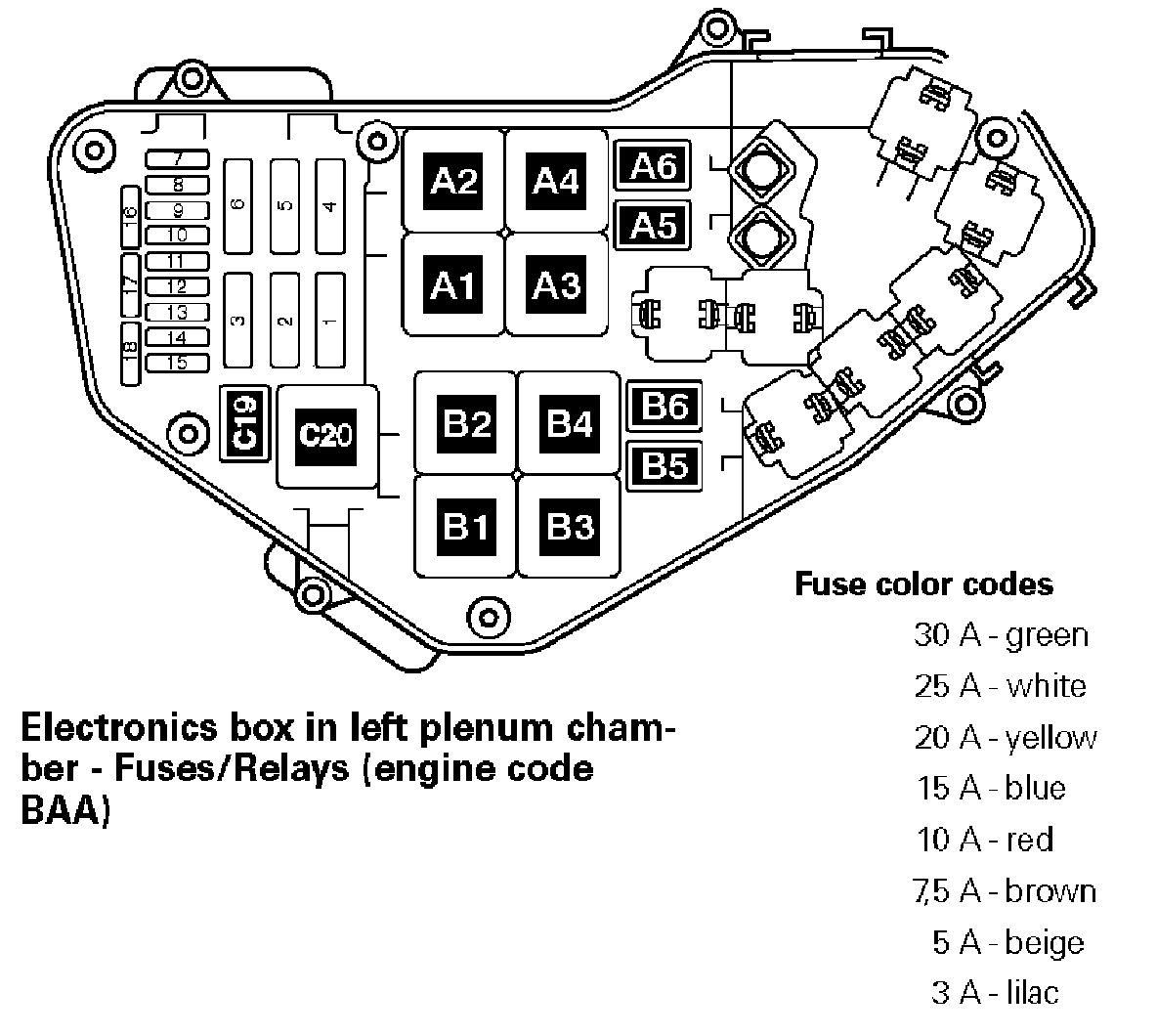

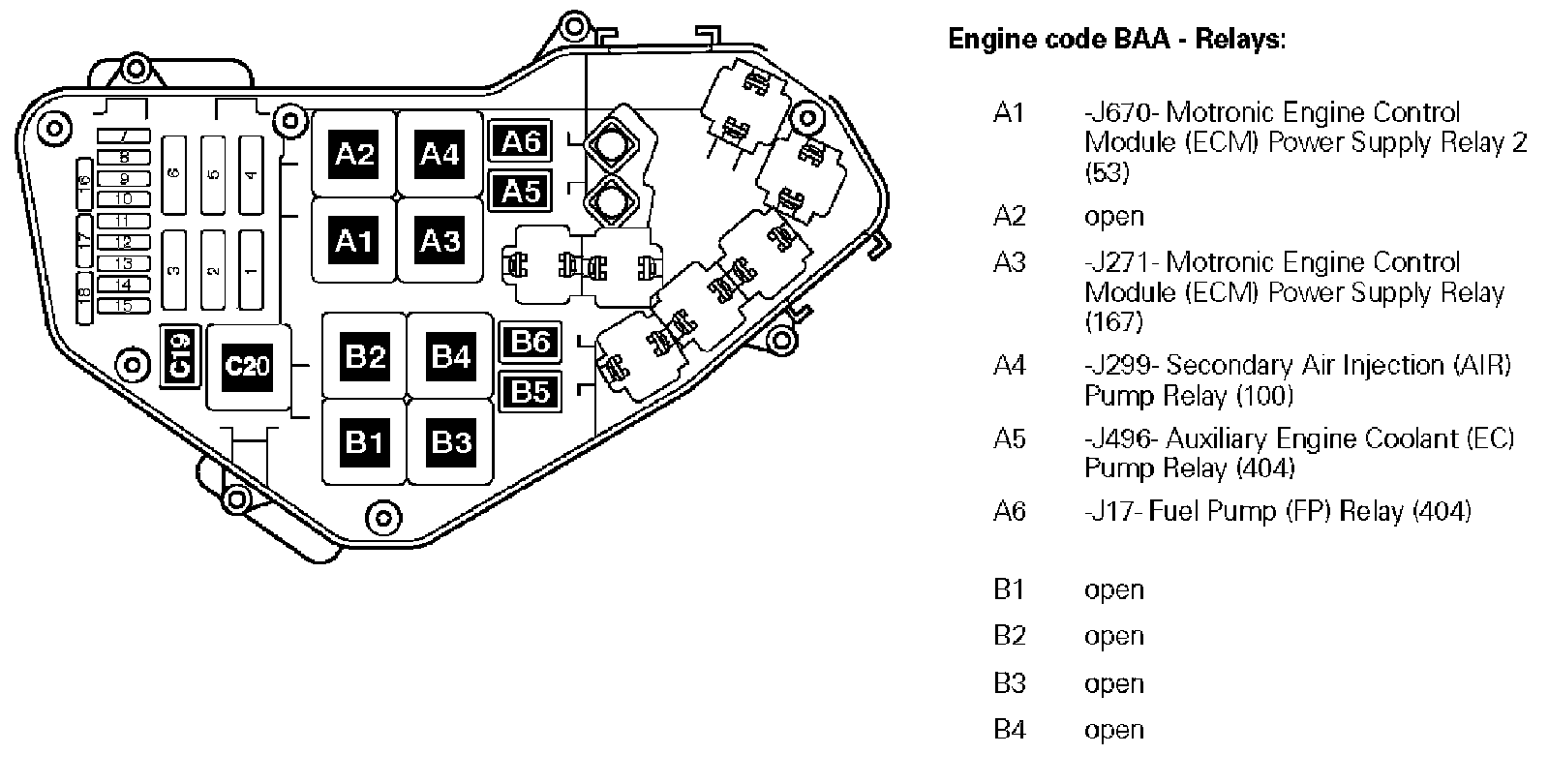

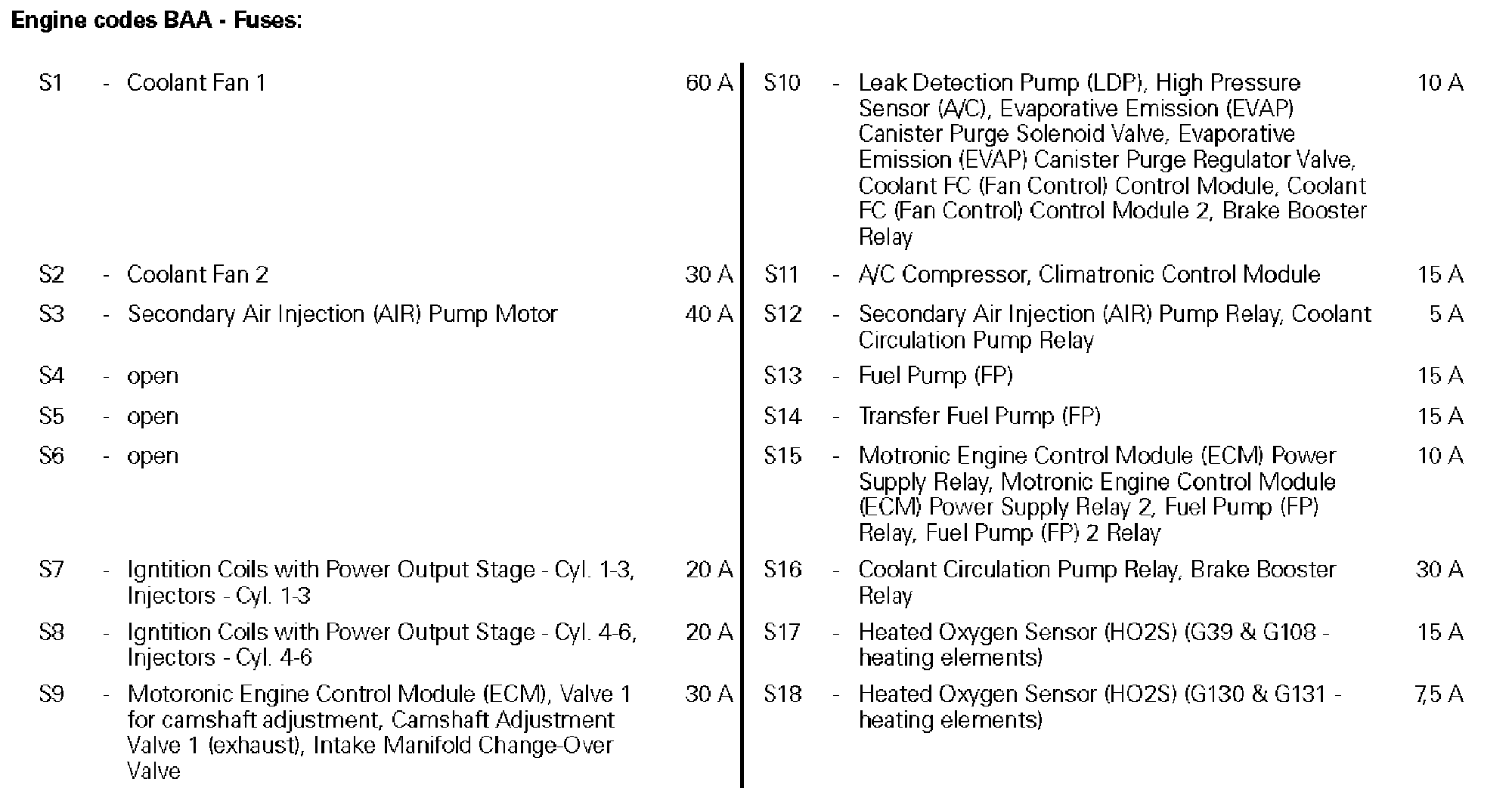

Electronics Box In Left Plenum Chamber - Fuses/Relays
Electronics Box In Left Plenum Chamber - Fuses/Relays
