Exhaust System Components, Removing and Installing - II

Exhaust System Components, Removing And Installing

Exhaust manifolds with primary catalytic converters and attachments, assembly overview.

Muffler with mountings.

Exhaust manifolds and exhaust pipes with primary catalytic converters, removing and installing.

NOTE: After working on the exhaust system ensure that the system has sufficient clearance from the bodywork. If necessary, loosen the flange on the catalytic converter and realign mufflers and exhaust pipes

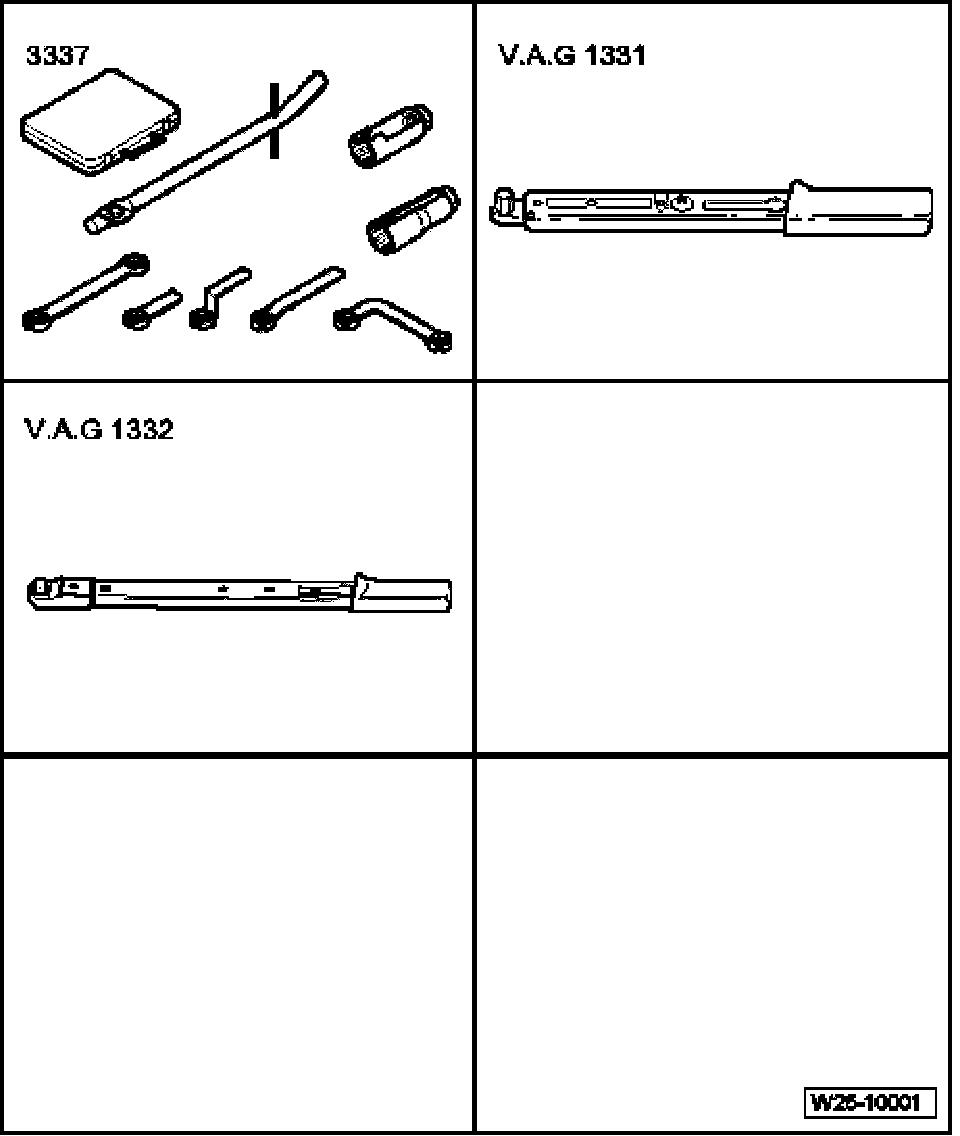

Special tools, testers and auxiliary items required
- Ring spanner 7-piece set for oxygen sensor 3337
- Torque wrench (5 to 50 Nm) V.A.G 1331
- Torque wrench (40 to 200 Nm) V.A.G 1332
