Main Relay (Computer/Fuel System)
>>
Locations
>>

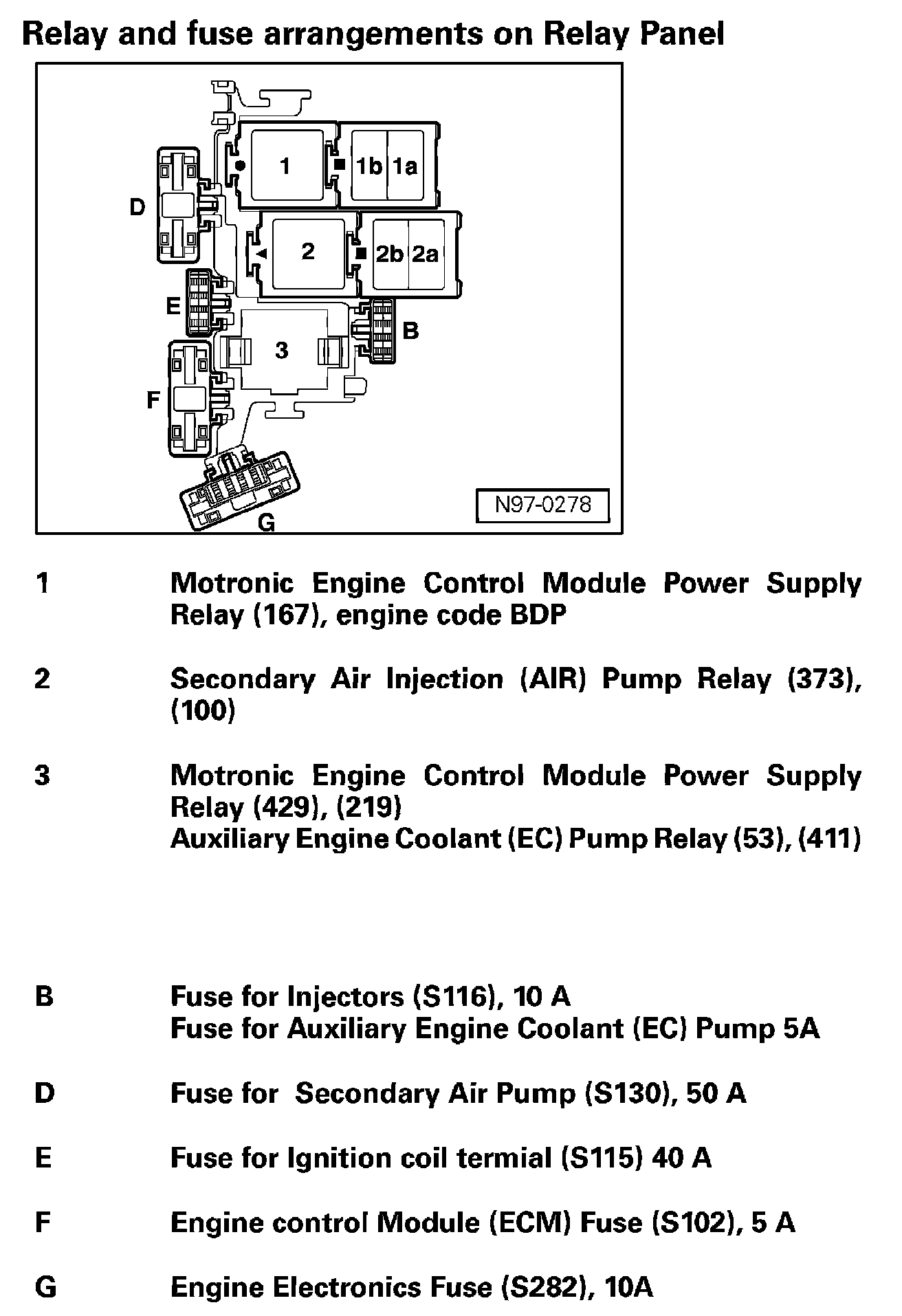

Relay and Fuse Arrangements on Relay Panel
Relay and Fuse Arrangements on Relay Panel
Relay and Fuse Arrangements on Relay Panel:
