Assembly Overview

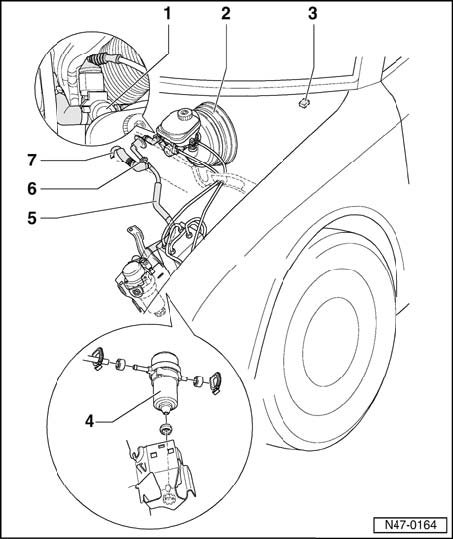

Assembly overview





1 - Brake booster pressure sensor G294

2 - Tandem brake booster

3 - Brake booster relay J569

4 - Brake system vacuum pump V192

5 - Vacuum hose

6 - Check valve
Functional check

7 - Vacuum hose
^ To engine
