Mechanical Diagrams

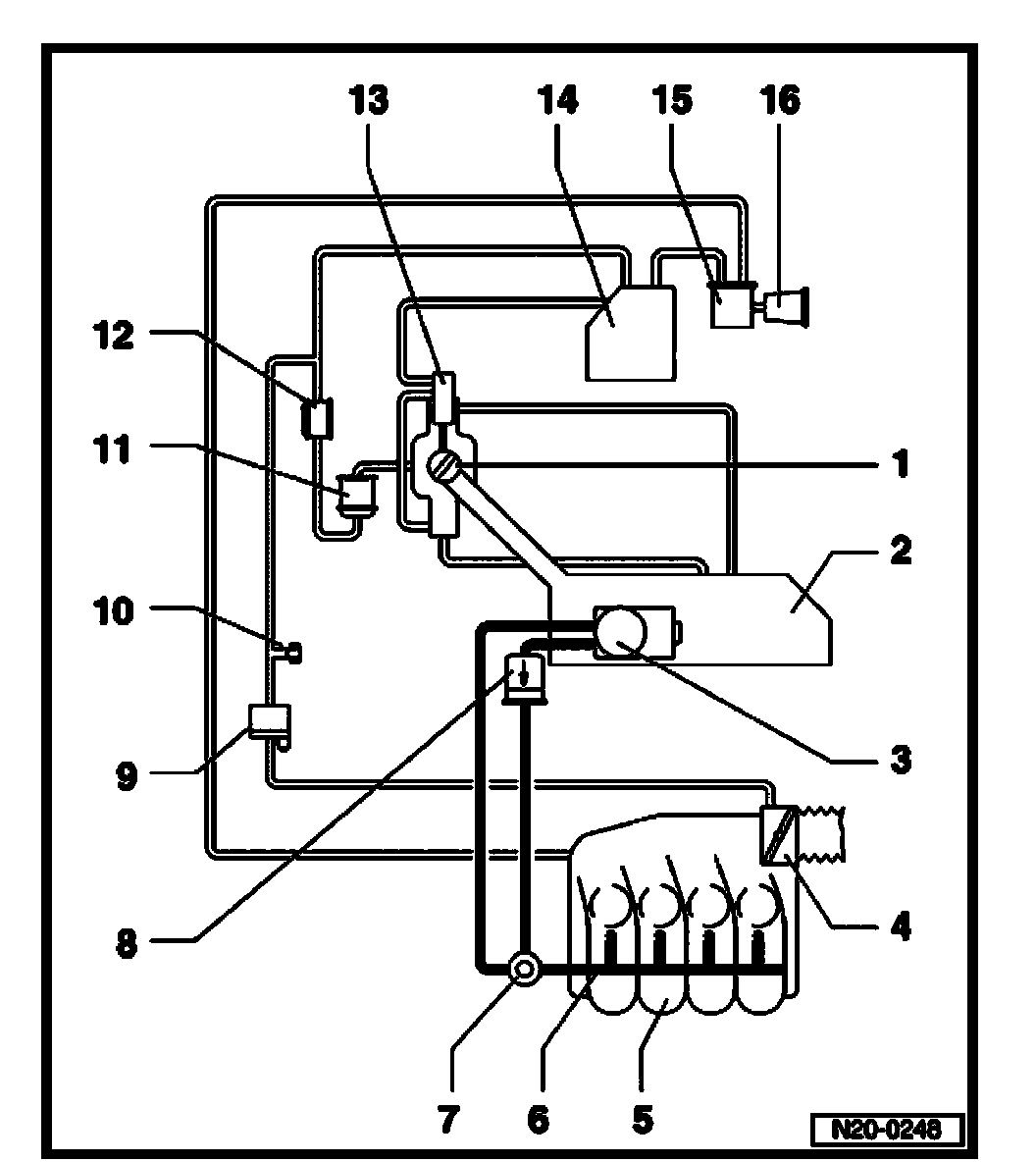

EVAP Canister System Overview, (Vehicles With Engine Code AVH, AZG)







1. Tank lid unit
- With rubber cap
2. Fuel tank
3. Fuel pump (FP) unit
4. Throttle valve control module -J338-*
5. Upper section of intake manifold
6. Fuel rail with fuel injectors
7. Fuel pressure regulator
8. Fuel filter
- Installation position: Arrow points in direction of flow
9. Evaporative Emission (EVAP) canister purge regulator valve -N80-*
- Installation position: Arrow points in direction of flow
10. Test connection
11. Gravity valve
12. Pressure retention valve
13. Change-over valve
14. EVAP canister
- Under wheelhousing liner in right rear wheelhousing
15. Leak Detection Pump (LDP) -V144-*
- Under wheelhousing liner in right rear wheelhousing
16. Air filter for leak detection pump
