Home
>>
Volkswagen
>>
2005
>>
New Beetle (1C1) L4-2.0L (AVH)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Instrument Cluster on Board Diagnostic (OBD)
>>
Scan Tool Testing
>>
Measuring Value Block (Function 08)
>>
Evaluating Measured Value Block
>>

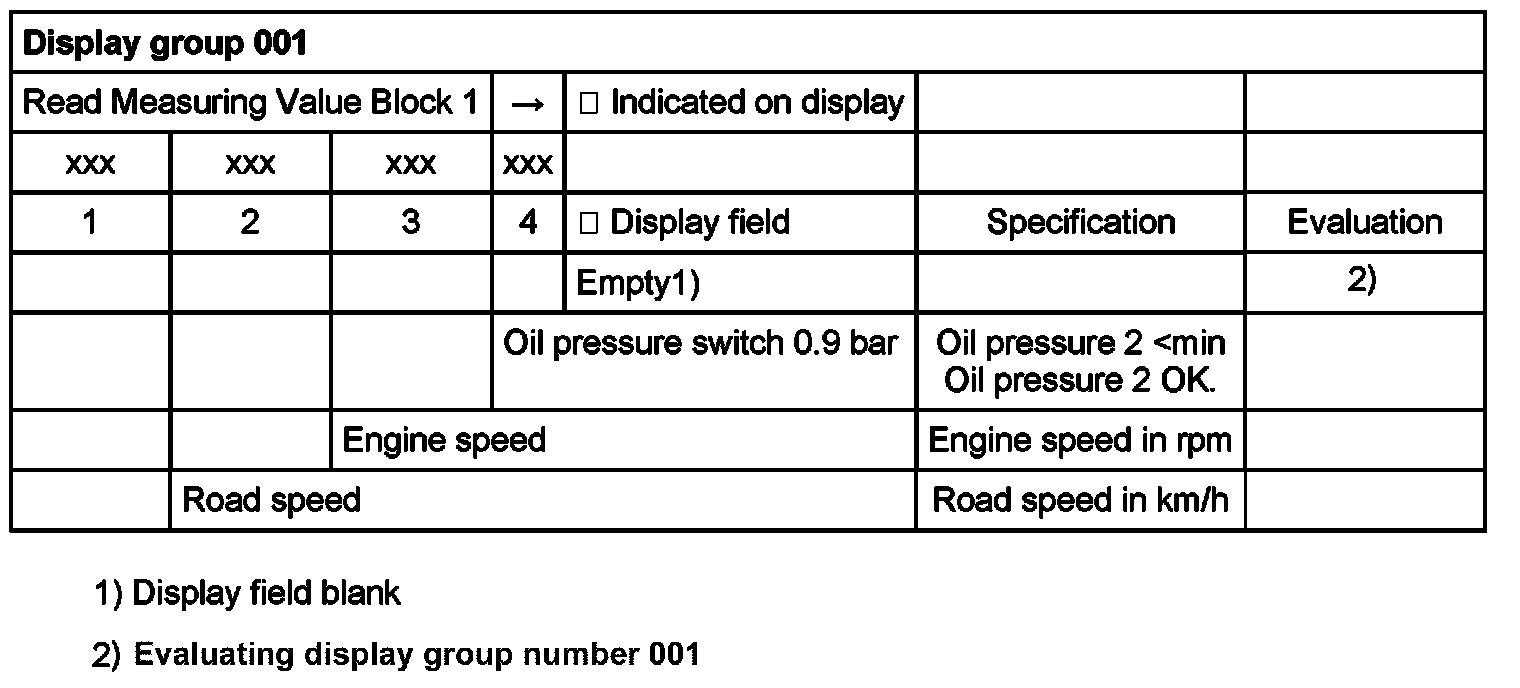

Display Group 001
Display Group 001
Display Group 001

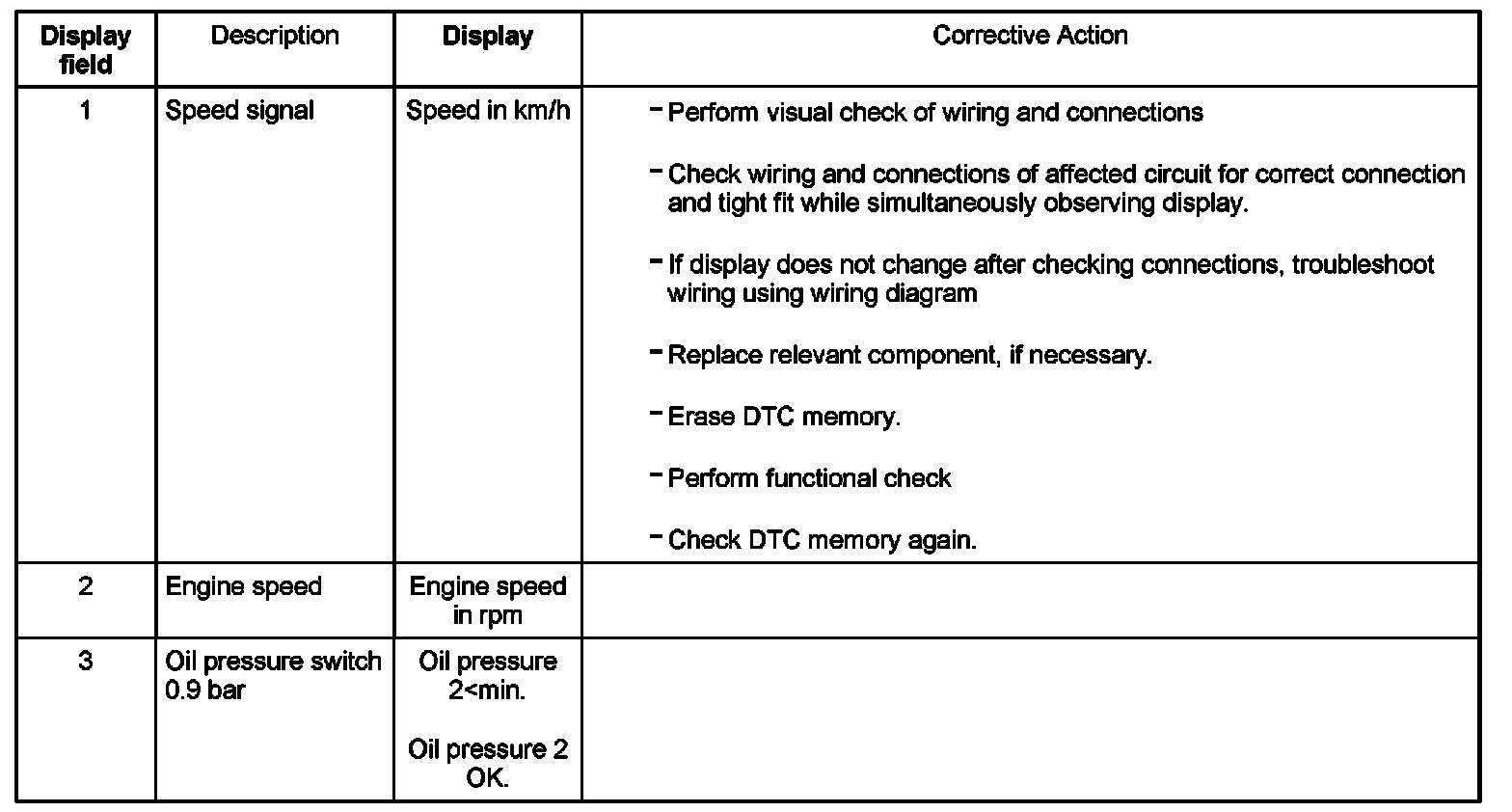

Evaluation for Display Group 001
