Crankshaft, Engine

Crankshaft
Axial clearance
New 0.07 to 0.17 mm
Wear limit 0.37 mm
Radial clearance
New 0.03 to 0.08 mm
Wear limit 0.17 mm

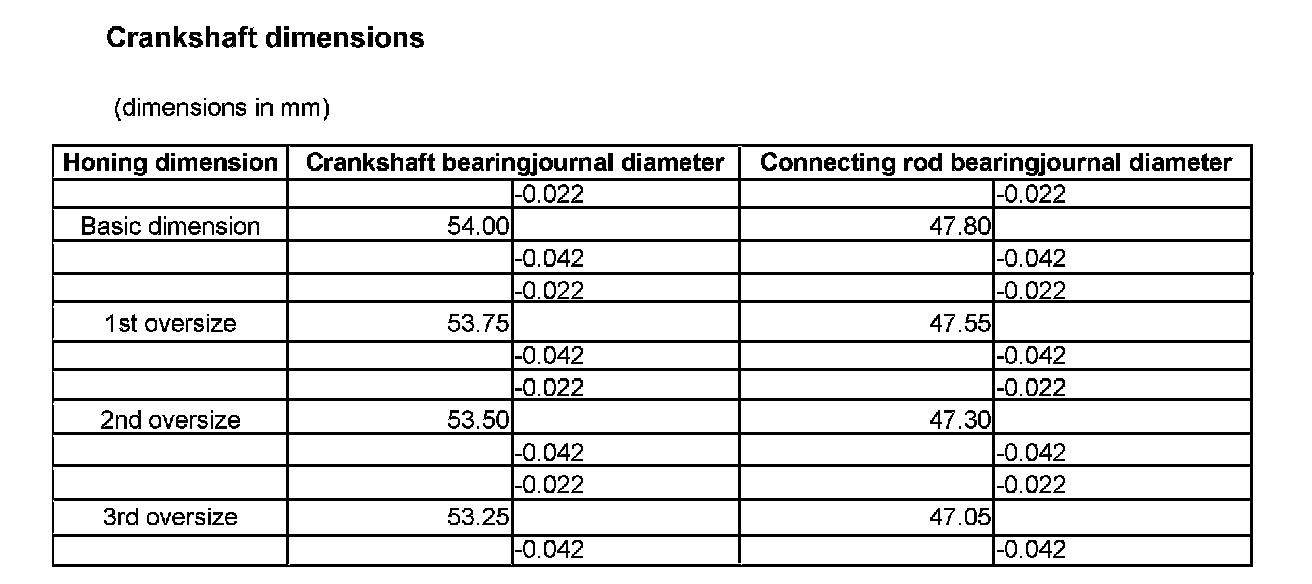

Crankshaft Dimensions

Crankshaft dimensions:

Crankshaft main bearing cap bolts 65 Nm plus 1/4 turn (90°)
Replace bolts
