Defroster Air Outlet Panel, Removing

Defroster Air Outlet Panel, Removing







First do the following:
- Remove radio
- Remove center air outlet console.

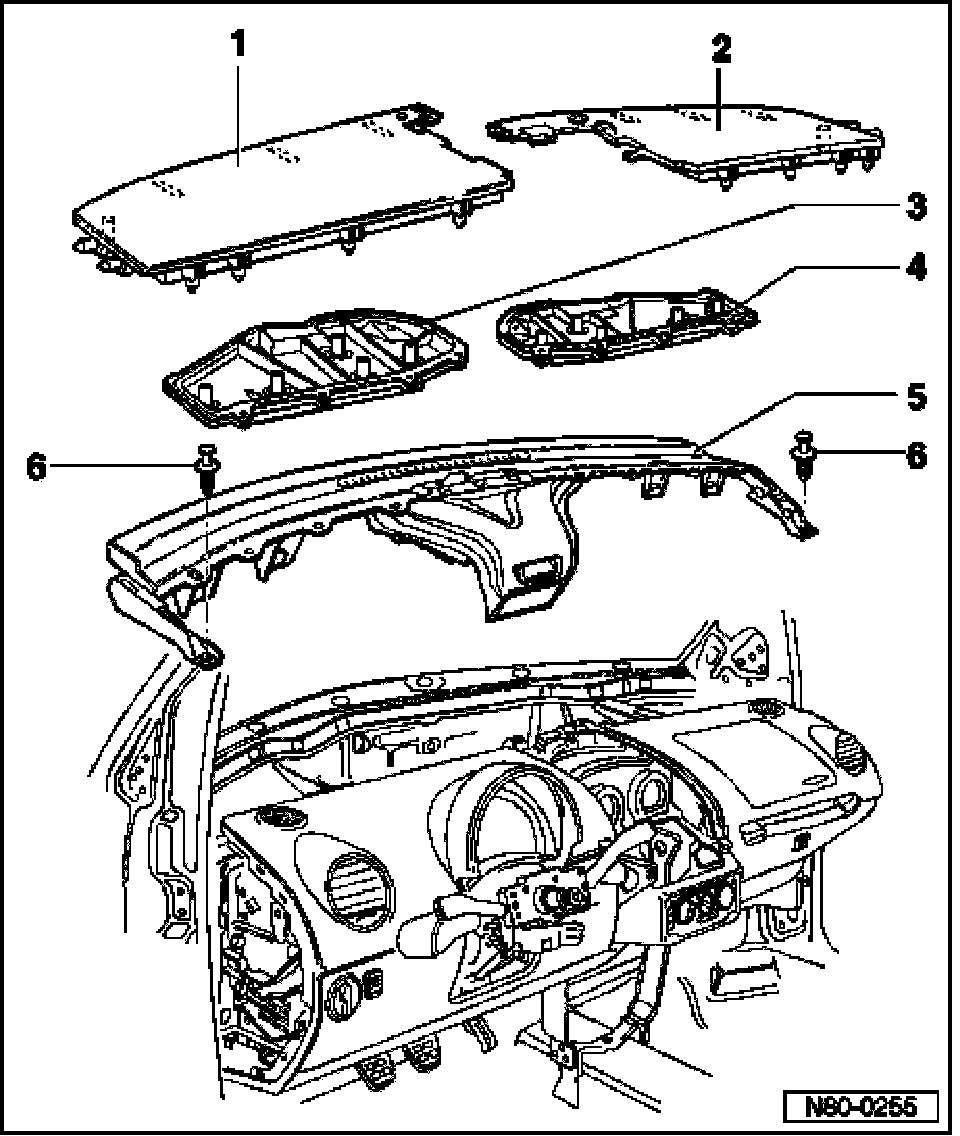

- Remove plenum panel covers -1- and -2-.
- Remove closeout panels -3- and -4-
- Remove spreader rivets -6- and lift out panel -5- from bulkhead clips.

1. Plenum panel cover
- Driver side
2. Plenum panel cover
- Passenger side
3. Closeout panel
- Driver side
4. Closeout panel
- Passenger side
5. Defroster air outlet panel
6. Spreader rivets
