Amplifier: Service and Repair

Amplifier - Jetta, Removing And Installing

Removing

CAUTION:
Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

- Remove parcel shelf trim

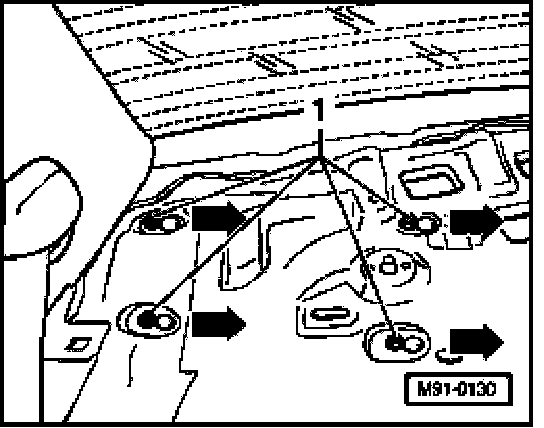

- Loosen (do not remove) screws -1- (tightening torque: 5.5 Nm).
- Release amplifier assembly from mounting position by sliding towards the perforations in the rear shelf sheet metal -arrow-.

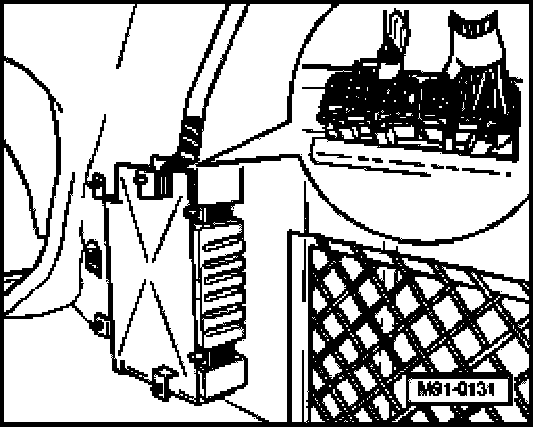

- Disconnect electrical connections at amplifier by depressing both securing lugs on each plug.

CAUTION: Always disconnect the green plug last in order to better support the weight of the amplifier assembly when it hangs on the wiring harnesses.







- Remove amplifier mounting screws as illustrated in detail.

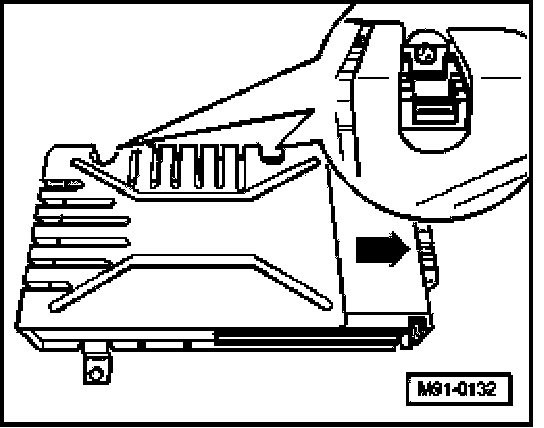

- Slide amplifier from mounting frame in direction of -arrow-.

Installing
- Install in reverse order of removal.
- Ensure radio is coded accordingly for "Monsoon" system using On Board Diagnostic program function 07, "Code Control Module": Radio system "Premium V". Radio system "Premium VI".

NOTE: Radio sound system coding must be checked/performed in order to account for presence of CD Changer (if installed), Monsoon system (where applicable) and interior sound field differences between models.
