Ribbed Belt, Routing

Ribbed Belt, Routing

4-Cylinder TDI - PD engine

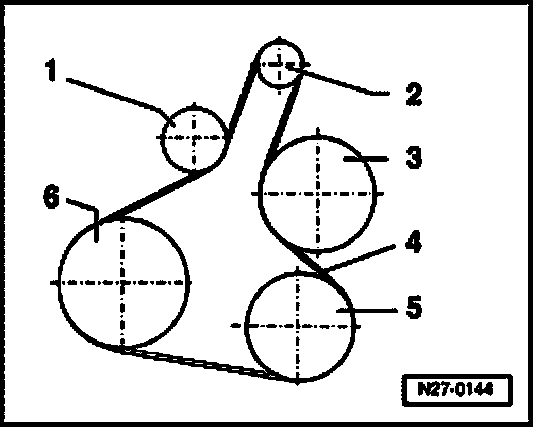

1. Tensioning roller
2. Pulley - generator
3. Pulley - a/c compressor
4. Ribbed belt - crankshaft/vibration damper, tensioning roller, generator, a/c compressor and power steering pump
5. Pulley - power steering pump
6. Pulley - crankshaft/vibration damper
