Ribbed Belt, Removing and Installing

Ribbed Belt, Removing And Installing

CAUTION:
- Before removing ribbed belt, mark direction of rotation. Belt damage will result if not reinstalled in proper direction.
- Check ribbed belt. Always replace ribbed belt if found to be faulty. This will avoid related failures or operating problems.

Special tools and auxiliary items needed

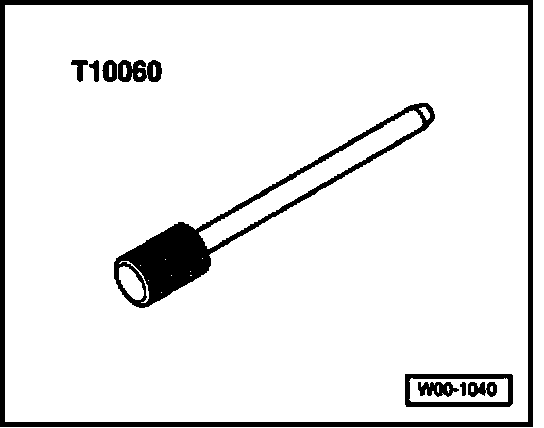

- Mandrel T10060 (or equivalent)

Removing
- Lift vehicle.

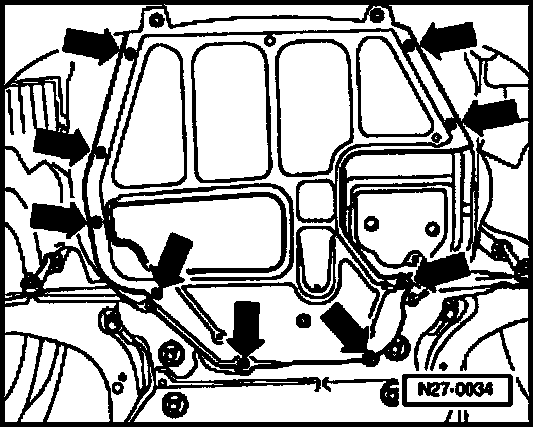

- Remove bolts -arrows- and remove center sound insulation.

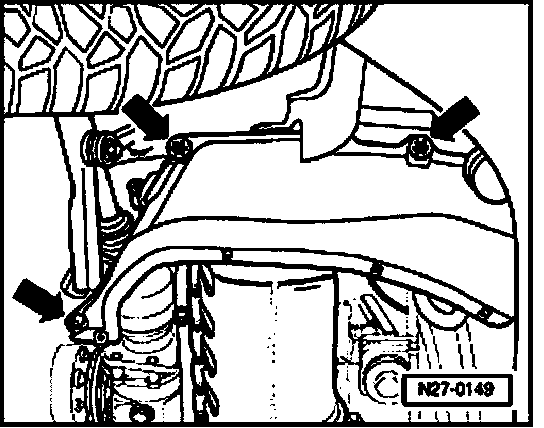

- Remove nut, release clips -arrows- and remove right lower sound insulation.
- Mark direction of rotation of ribbed belt if it is to be reused.

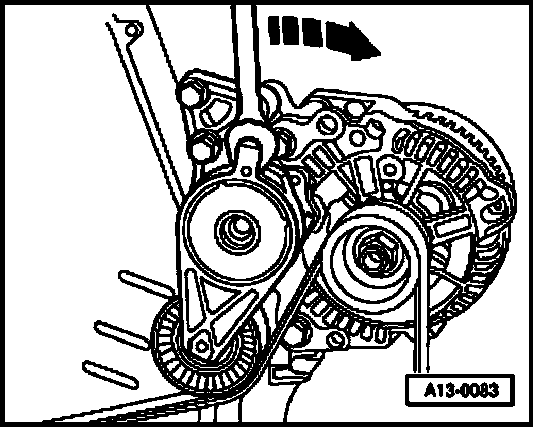

- Loosen ribbed belt by turning tensioner in direction of -arrow-.







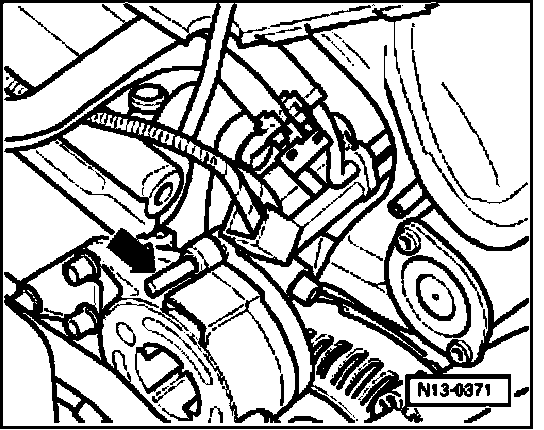

- Block tensioner with mandrel T10060 or equivalent.
- Remove ribbed belt.

Installing

CAUTION:
- Note previously marked running direction of ribbed belt when reinstalling.
- Before installing ribbed belt, make sure that all subassemblies (generator, a/c compressor, etc.) are securely mounted and turn freely.
- When installing belt, ensure correct seating in the belt pulleys.

- Install ribbed belt according to routing diagram.
- Remove mandrel T10060.
- Start engine and check belt running.
- Install engine cover.
- Install center and right sound insulation.
