Steering Column: Locations

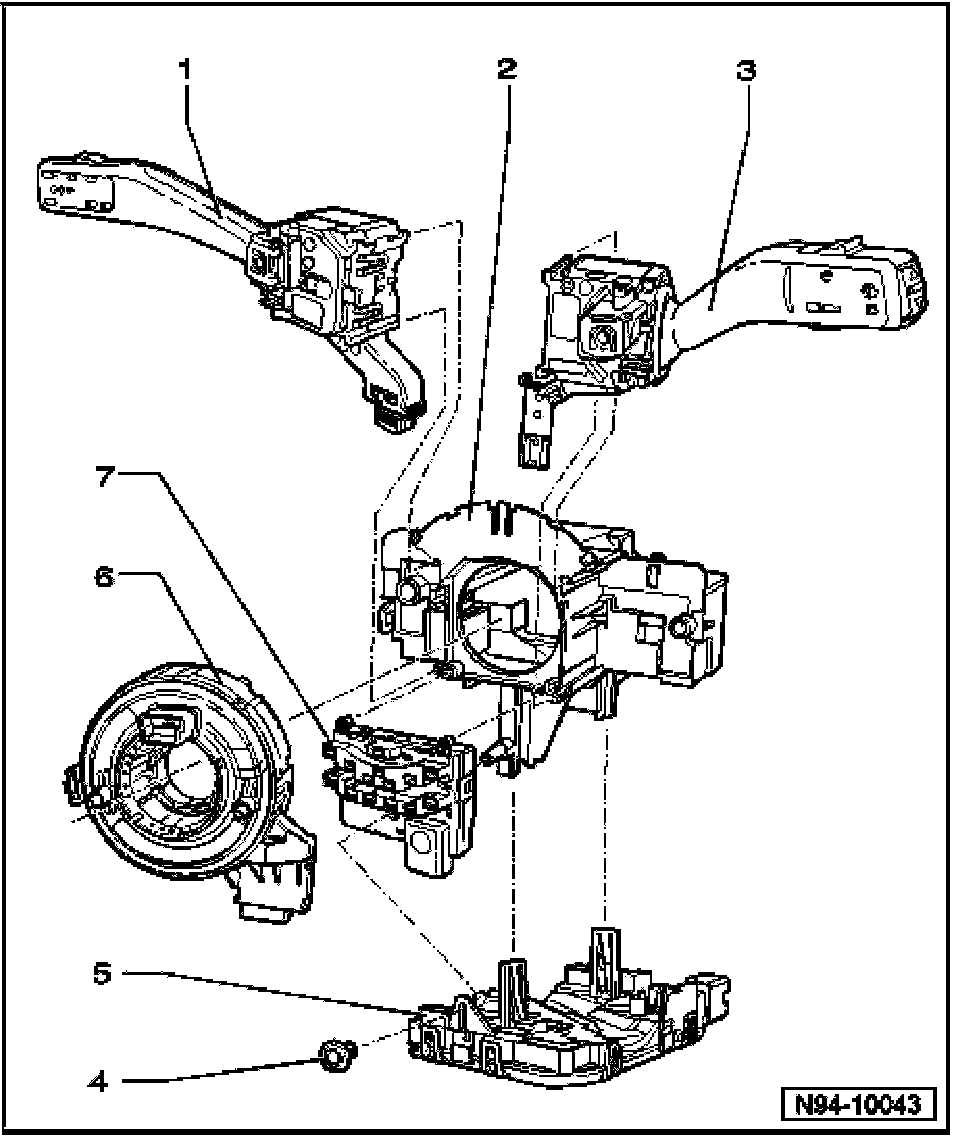

Steering Column Switches, Assembly







1. Turn signal switch
- Turn signal switch" consists of Turn Signal switch E2, Headlamp Dimmer/Flasher Switch E4 and Cruise Control Switch E45
- Switch is illustrated without Cruise Control Switch E45
2. Mounting frame
3. Windshield Wiper Switch E
4. Screw
5. Steering Column Electronic Systems Control Module J527
- Coding
- Output Diagnostic Test Mode (DTM)
6. Airbag Spiral Spring/Return Spring With Slip Ring F138
7. Steering Angle Sensor G85
- Basic setting
