Procedures

High-Mount Brake Light M25, Removing And Installing

NOTE: If damaged, the entire High-mount Brake Light M25 must be replaced.

Removing:

CAUTION:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.

- Remove roof end strip

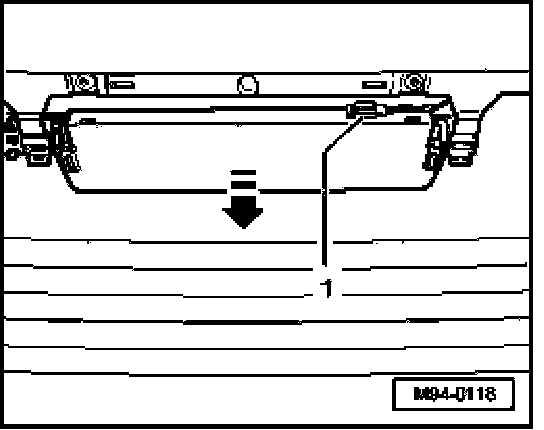

- Disconnect electrical connection - 1 -.
- Press the High-mount Brake Lamp M25 - in direction of arrow - toward rear window.

Installing:
Install in reverse order of removal.
