Fastener Tightening Sequence

Fastener Tightening Sequence

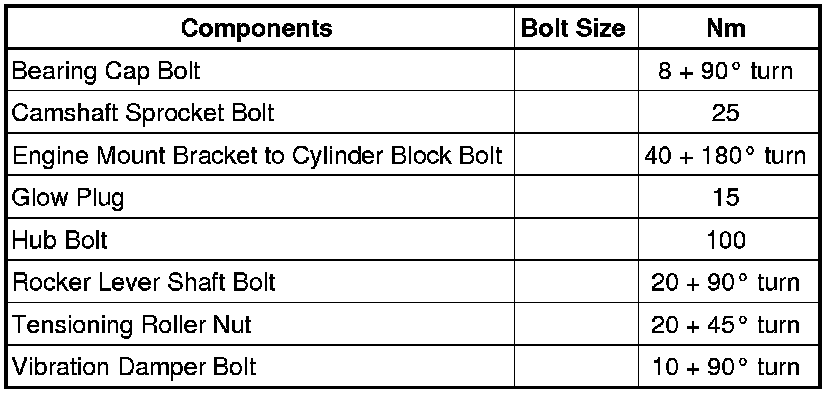

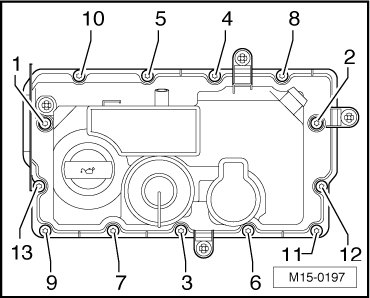

Cylinder Head Cover Bolt Tightening Sequence





- Tighten the bolts in the sequence - 1 to 13 - to 10 Nm.

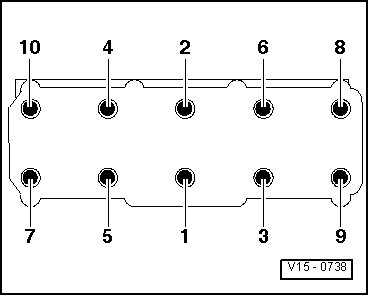

Cylinder Head Bolt Tightening Sequence

- Fasten the cylinder head in four steps according to the indicated tightening sequence, as follows:





1 - Tighten using torque wrench

Step 1 = 35 Nm

Step 2 = 60 Nm

2 - Tighten further using a ratchet

Step 3 = 1/4 turn (90°)

Step 4 = 1/4 turn (90°)
