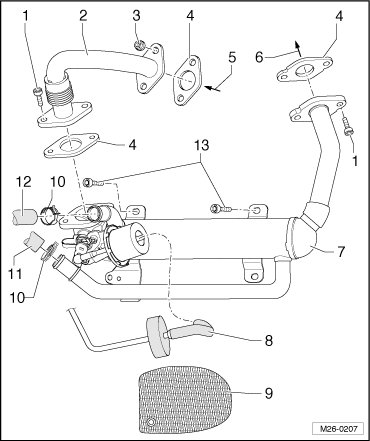

EGR Cooler Assembly Overview

EGR Cooler Assembly Overview





1 22 Nm

2 Connecting pipe

3 22 Nm

• Replace

4 Gasket

• Replace

5 To cooler for exhaust gas recirculation

6 To Intake manifold

7 Cooler for Exhaust Gas Recirculation (EGR)

• Removing and installing => [ EGR Cooler ] EGR Cooler.

8 Pipe/hose line

9 Heat shielding

10 Spring-type clip

11 Coolant hose

• To cooler for exhaust gas recirculation

12 Coolant hose

• From cooler for Exhaust Gas Recirculation (EGR)

13 10 Nm
