Drive Belt: Diagrams

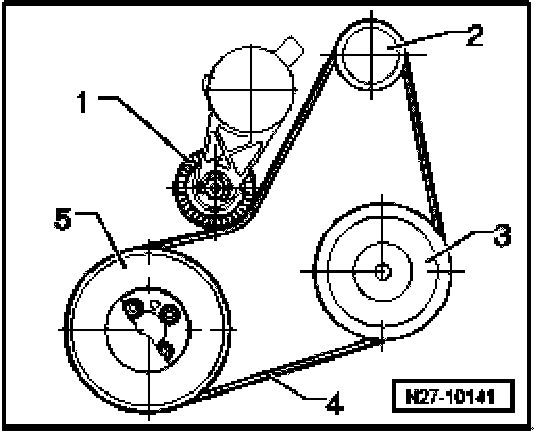

Ribbed Belt Routing, 1.9L TDI-PD Engine







Vehicles with A/C
1. Tensioner roller
2. Ribbed belt pulley - generator
3. Ribbed belt pulley - A/C compressor
4. Ribbed belt
5. Ribbed belt pulley - crankshaft
