Oil Supply Line Assembly Overview

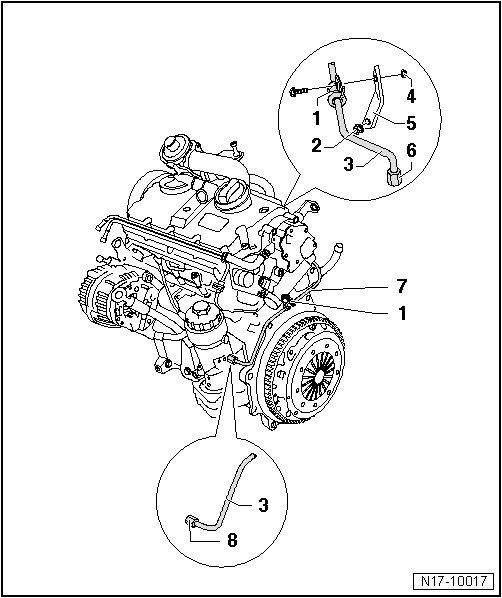

Oil Supply Line Assembly Overview





1 Retaining clip

2 25 Nm

3 Oil supply line

• To turbocharger

4 10 Nm

5 Bracket

6 Union nut, 22 Nm

7 10 Nm

8 Union nut, 22 Nm
