Rear Window Washer Jets, Adjusting

Rear Window Washer Jets, Adjusting

Special tools and auxiliary items needed

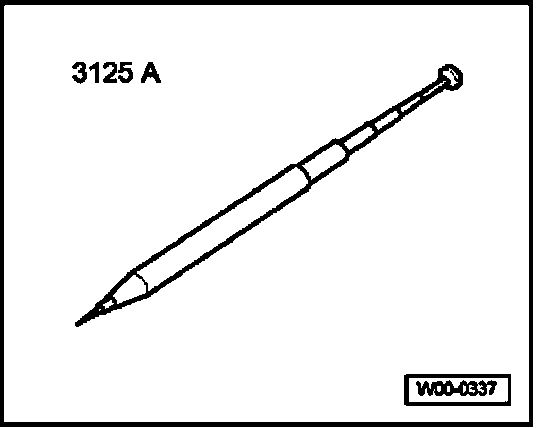

- T10127 Window washer jet adjusting tool (replaces 3125A)

CAUTION: Washer jets must not be cleaned opposite to the spray direction, e.g.: blown through from front.

NOTE: Replace jet if spray is irregular or cannot be adjusted to center of wiped area.

- Adjust washer jet so that spray is in center of wiped area.
