Center Position on Rack, Determining

Center position on rack, determining
Rack should be positioned in center position before installing power steering gear.

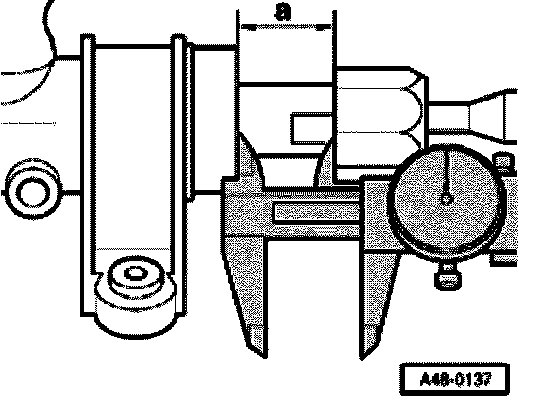

- Slide rack until dimension - a - is achieved.
Measure - a - = 30.5 mm
