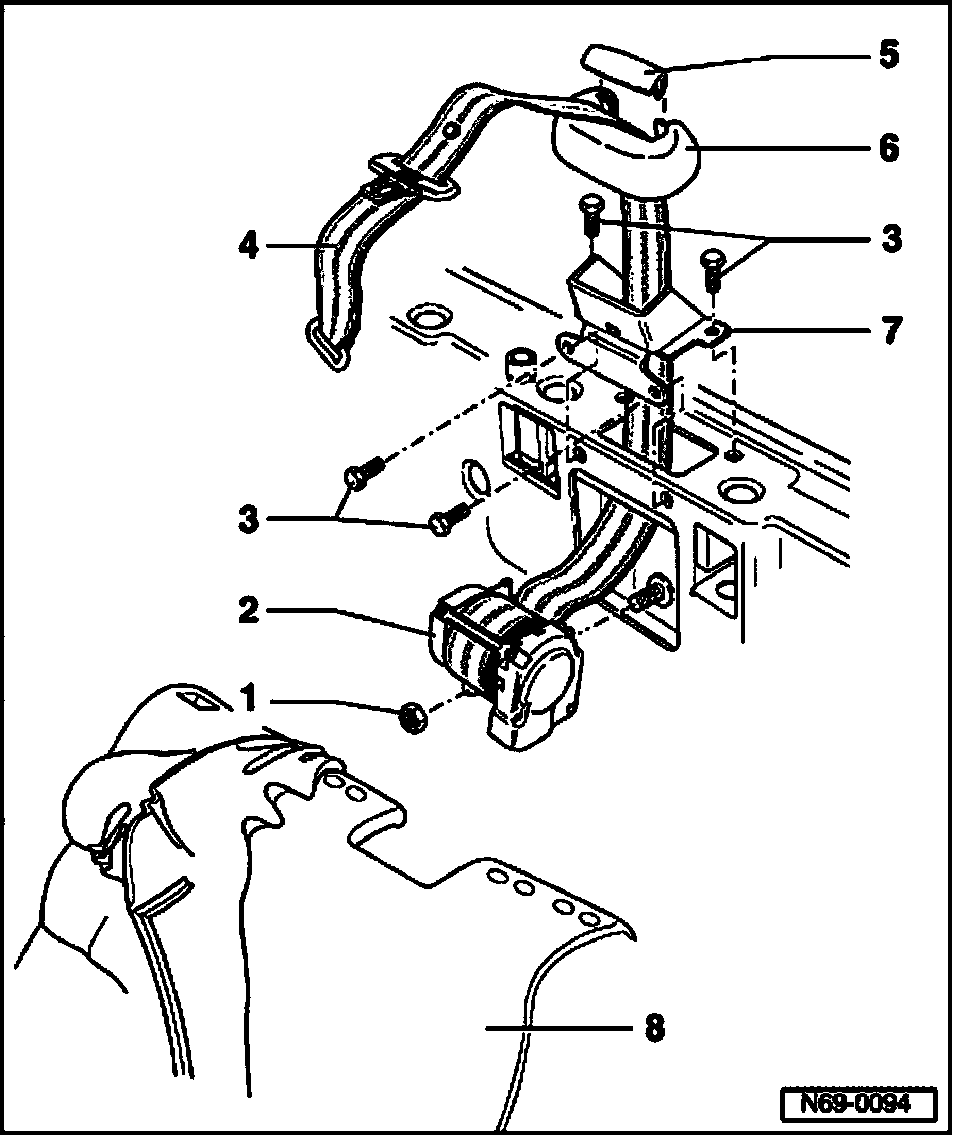

Rear Center Seatbelt, Assembly Overview

Rear Center Seatbelt, Assembly Overview







1. Hex nut
- 40 Nm
2. Automatic belt retractor
3. Bolts
- Qty. 4, 23 Nm
4. Belt
5. Concealment cap
6. Seatbelt guide
7. Belt mounting
8. Cushion
