Home
>>
Volkswagen
>>
2005
>>
Golf (1J1) L4-2.0L (AVH)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
6-Pin Connector
6-Pin Connector

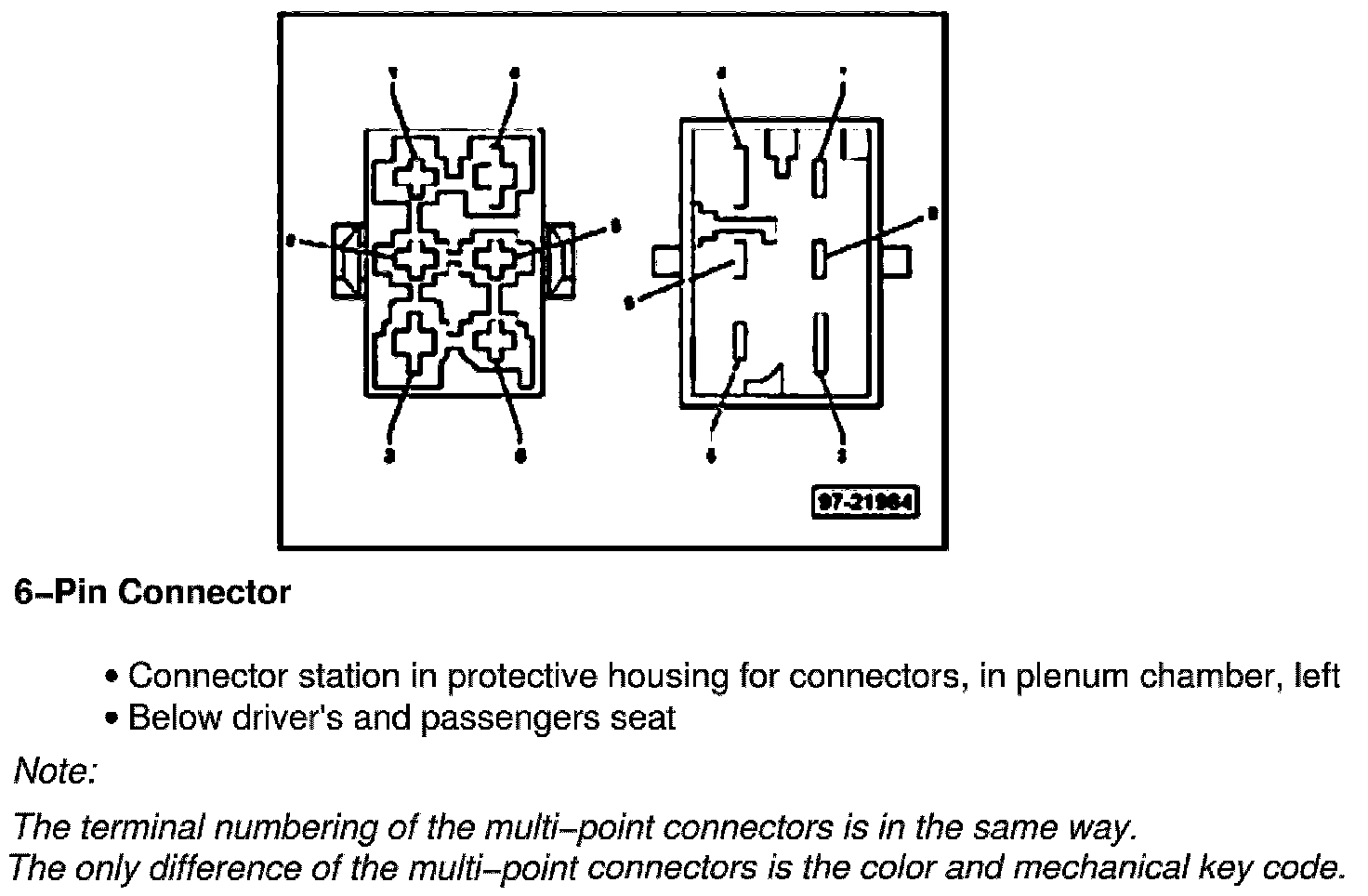

6-Pin Connector:

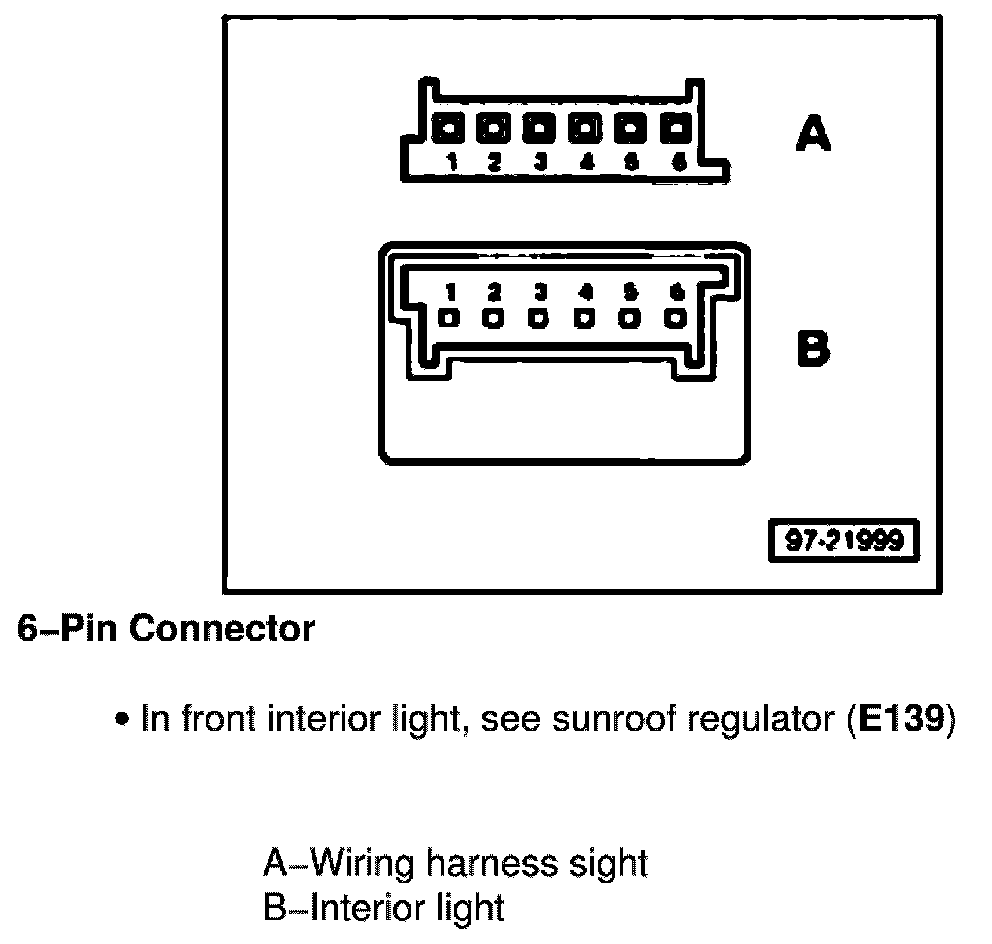

6-Pin Connector:
