Transfer Case Identification

Transfer case identification
The transfer case 0AD is allocated to the automatic transmission 09D.

Off-road reduction gearing is integrated into the transfer case.

Shifting between the street ratio (high range) and the off-road reduction gearing (low range) is initiated by the Transfer case operating unit -E473-.

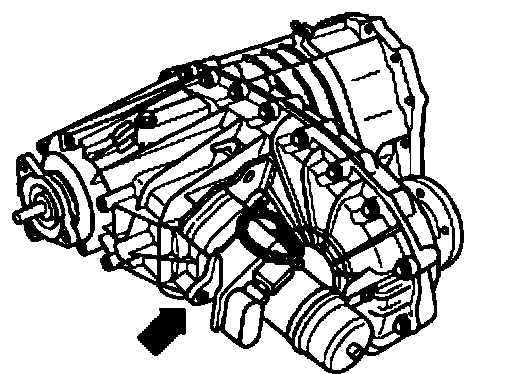

Location on transfer case (arrow)

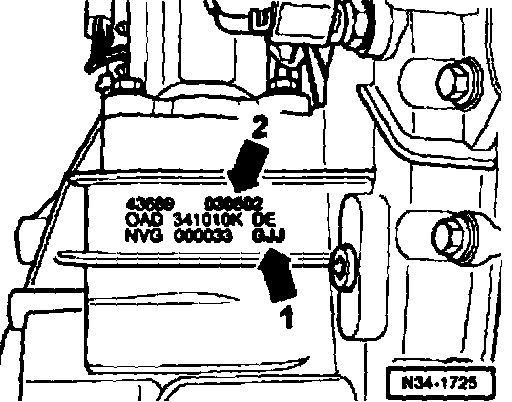

Code letters (arrow -I-) and date of manufacture (arrow -2-) of transfer case





Additional data depends on manufacture.
