Fuel Distributor: Service and Repair

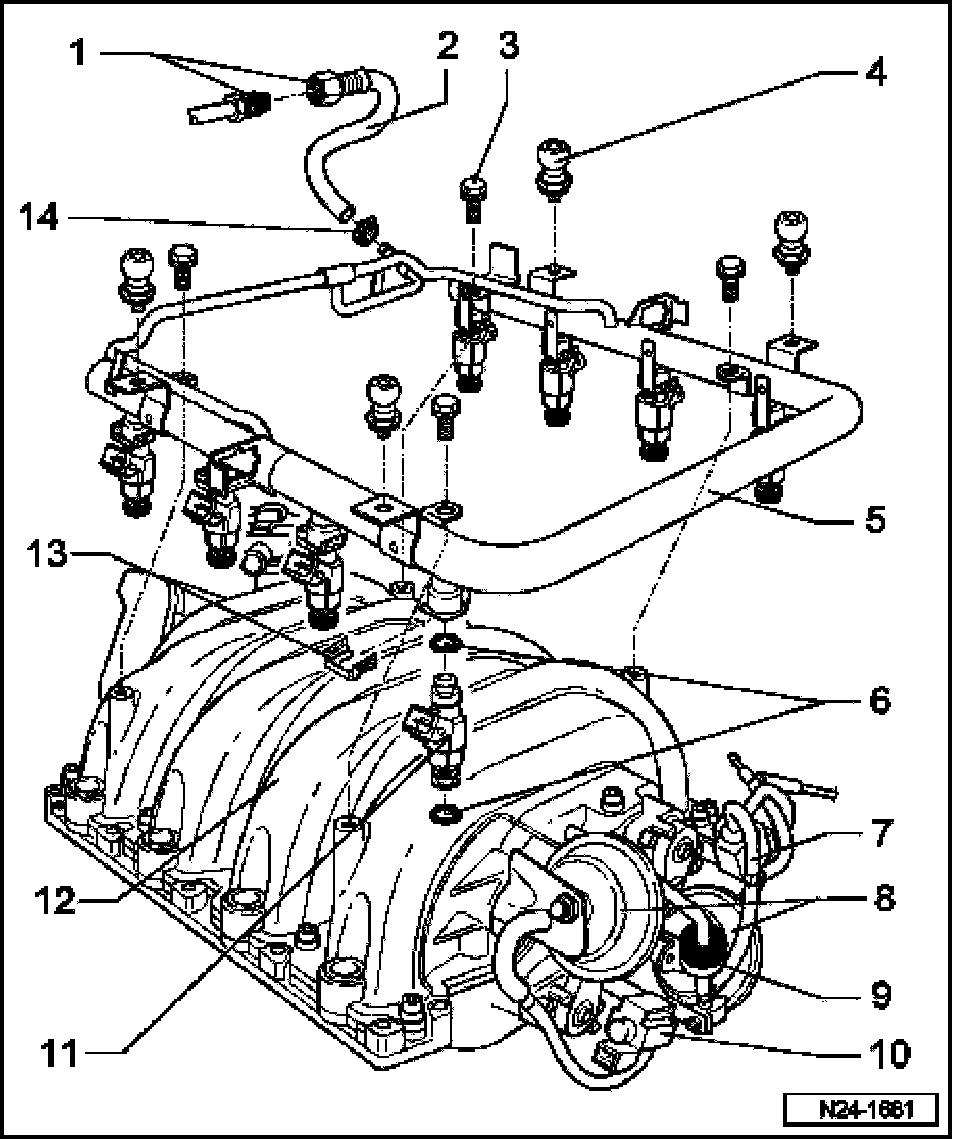

Fuel Distributor With Fuel Injectors, Disassembling And Assembling







1 Threaded connection, 22 Nm
- Counterhold when tightening
- For fuel supply
2 Fuel supply line
- Check for secure seating
- Secure with spring type clamp
3 10 Nm
4 Ball pin, 3 Nm
- For engine cover
5 Fuel distributor
- With retaining straps for 3-pin harness connector of Knock Sensors (KS)
6 O-ring
- Always replace
- Lightly lubricate O-rings with clean engine oil before installing
7 Intake Manifold Tuning (IMT) Valve -2- -N261-
8 Vacuum actuator
- For intake manifold change-over 9
9 Check valve
- Installation position: black side of valve faces intake manifold connection.
10 Intake Manifold Change-Over Valve -N156-
11 Cylinder 1 Fuel Injector -N30- to Cylinder 4 Fuel Injector -N33-, Cylinder 5 Fuel Injector -N83- to Cylinder 8 Fuel Injector -N86-
- Checking. Refer to Fuel Injectors, Checking.
12 Intake manifold change-over
13 Retaining clip
- Make sure clip is correctly seated on fuel injector and fuel distributor
14 Spring clip.
