Procedures

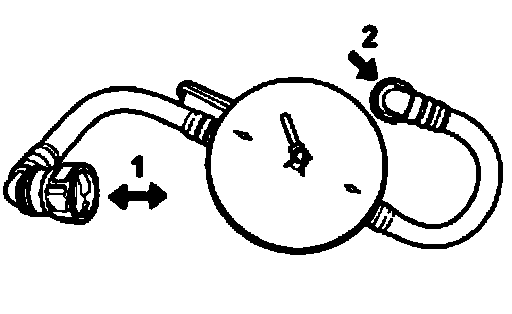

Fig. 1 Checking pressure retention valve on EVAP canister
The pressure retention valve is open for flow in both directions (arrow -1-) on breather valve side (on expansion tank). (Arrow -1- is on expansion tank side.)
On the other side, to EVAP canister, flow is possible in one direction only (arrow -2-).
