Aligning Exhaust System

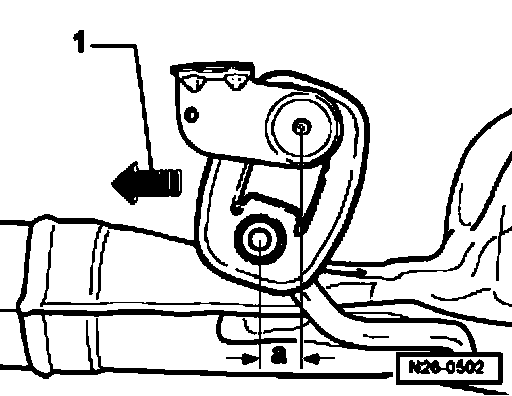

Fig. 2 Aligning exhaust system
^ Exhaust system cold
- Press exhaust system in direction of travel -1- and tighten double clamp so far that dimension -a- is attained at the supports.
Center muffler- dimension -a- = 10 mm
Rear muffler- dimension -a- = 15 mm
