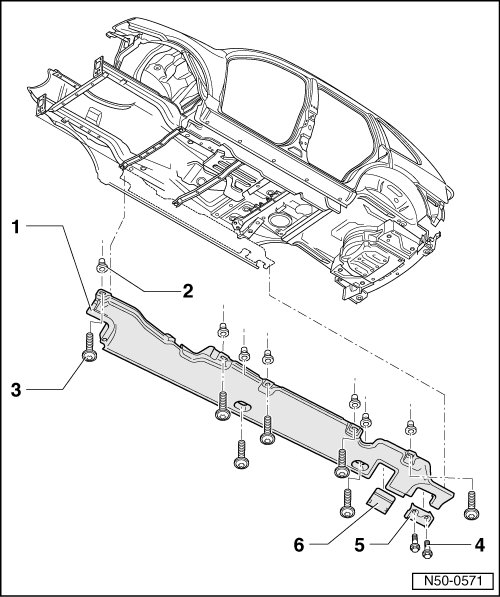

Underbody Trim Assembly Overview

• The illustration shows the left side. It can also be applied to the right side.





1 Underbody cover

2 Expanding nut

• Quantity: 8

3 Bolt

• Quantity: 8

• 3.5 Nm

4 Bolt

• Quantity: 2

• 9 Nm

5 Lifting platform take-up point

6 Cover

• Clipped into underbody cover.
