Underbody Impact Guard For Transverse Link Assembly Overview

Underbody Impact Guard

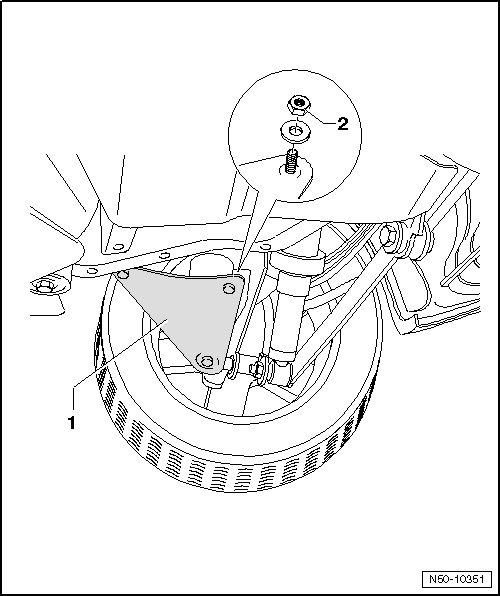

Underbody Impact Guard for Transverse Link Assembly Overview

• The description applies to the right side. The left side is derived accordingly from this.





1 Underbody impact guard for transverse link

2 Hex nut

• 3 pieces per side

• Tightening specification: 30 Nm
