Sill Panel Guard Assembly Overview

Underbody Impact Guard

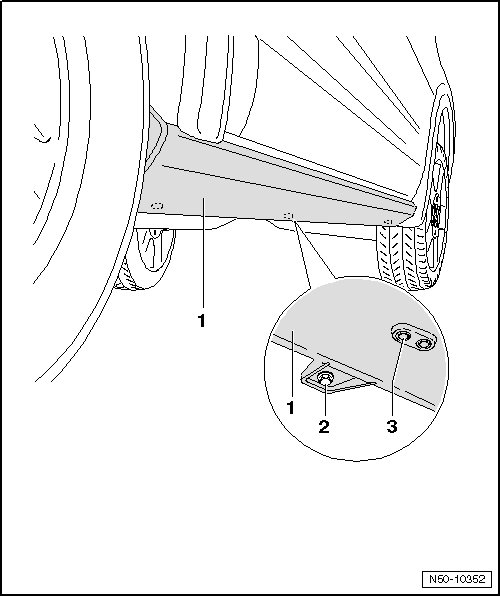

Sill Panel Guard Assembly Overview

• The illustration shows the left side. It can also be applied to the right side.





1 Sill panel guard

2 Bolt

• Quantity: 6

• Tightening specification: 30 Nm

3 Bolt

• Quantity: 3

• Tightening specification: 30 Nm
