EGR Valve: Service and Repair

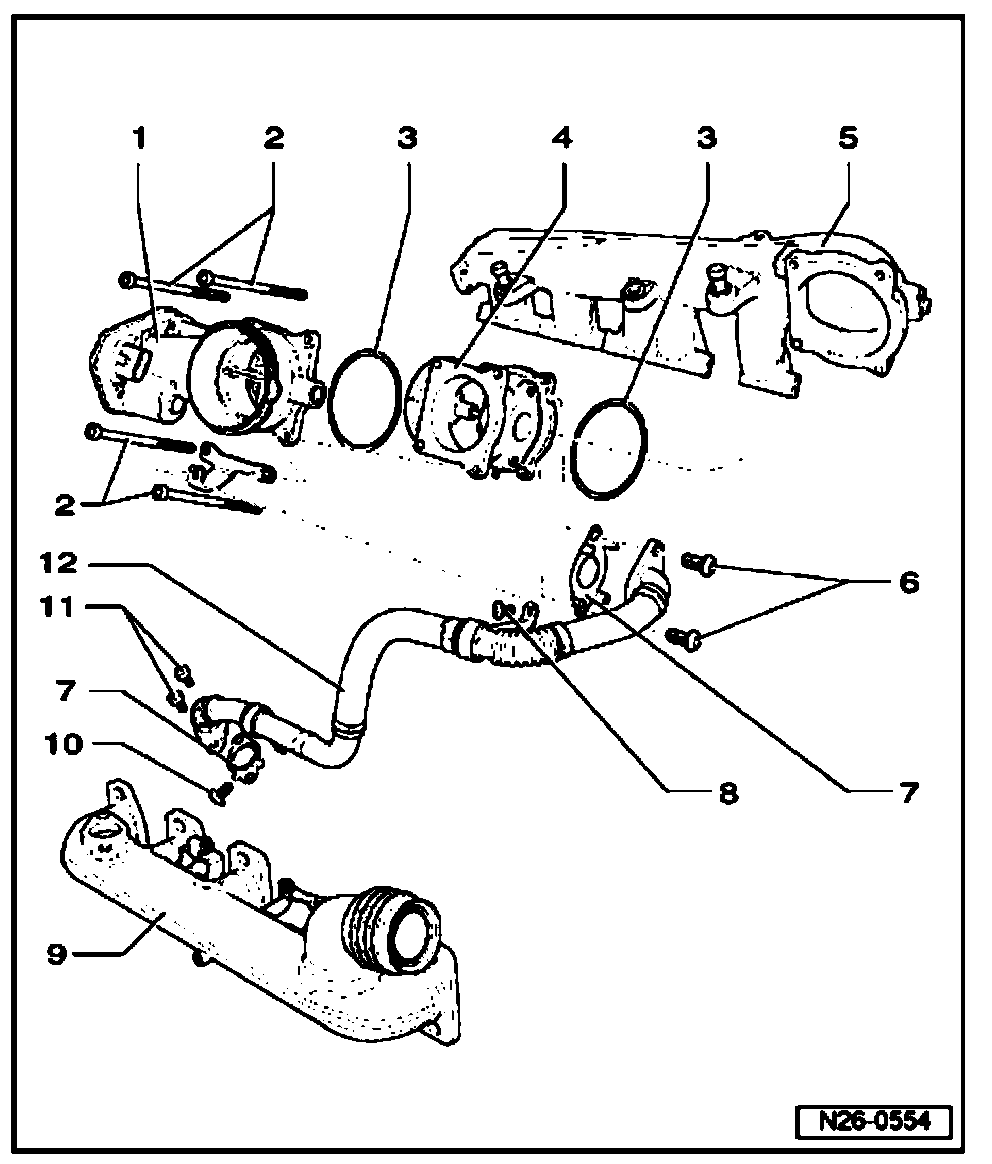

Components of Exhaust Gas Recirculation (EGR), overview





1. Intake manifold
^ With intake manifold flap
2. 8 Nm
3. Seal
^ Replace
4. EGR Vacuum Regulator Solenoid Valve
^ Replace
^ Note installed position
8. 8 Nm
9. Exhaust manifold
10. 8 Nm
11. 20 Nm
12. Connection tube
