Front Camber

Front axle camber, centering


Only by moving the subframe it is possible to change the camber slightly.
- Remove noise insulation tray.





- Loosen hex bolts -1-, -2-, -5-, -6-, -7- and -8-.

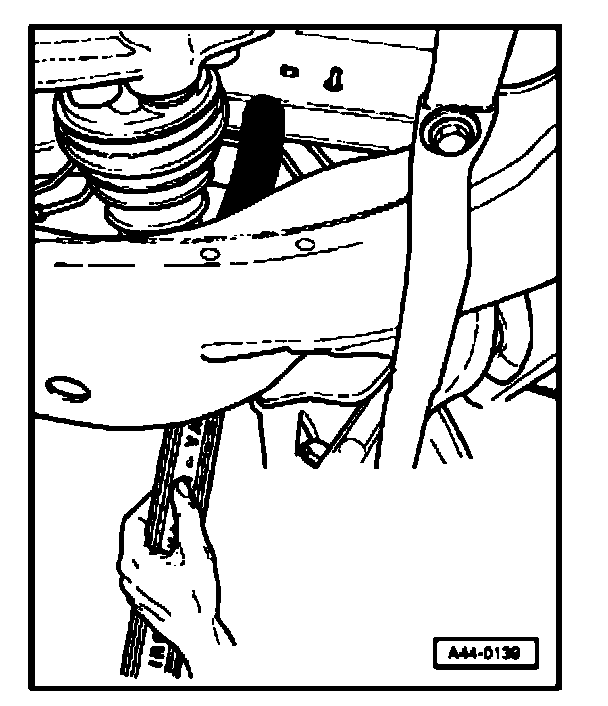

- Move subframe with a plastic coated pry bar until the specified value for camber is achieved.





- Screw in new hex bolts -7- and -8-.
- Screw in new front hex bolts -5- and -6- and tighten, Refer to Front Suspension, Service and Repair, Front Suspension, Servicing, See item 28.
- Tighten new hex bolts -1-, -2-, -3- and -4- , Refer to Front Suspension, Service and Repair, Front Suspension, Servicing, See - item 27.

- Install sound insulation below engine/transmission.

Important: The toe must be checked after each camber adjustment.
