Parts of EVAP Canister System

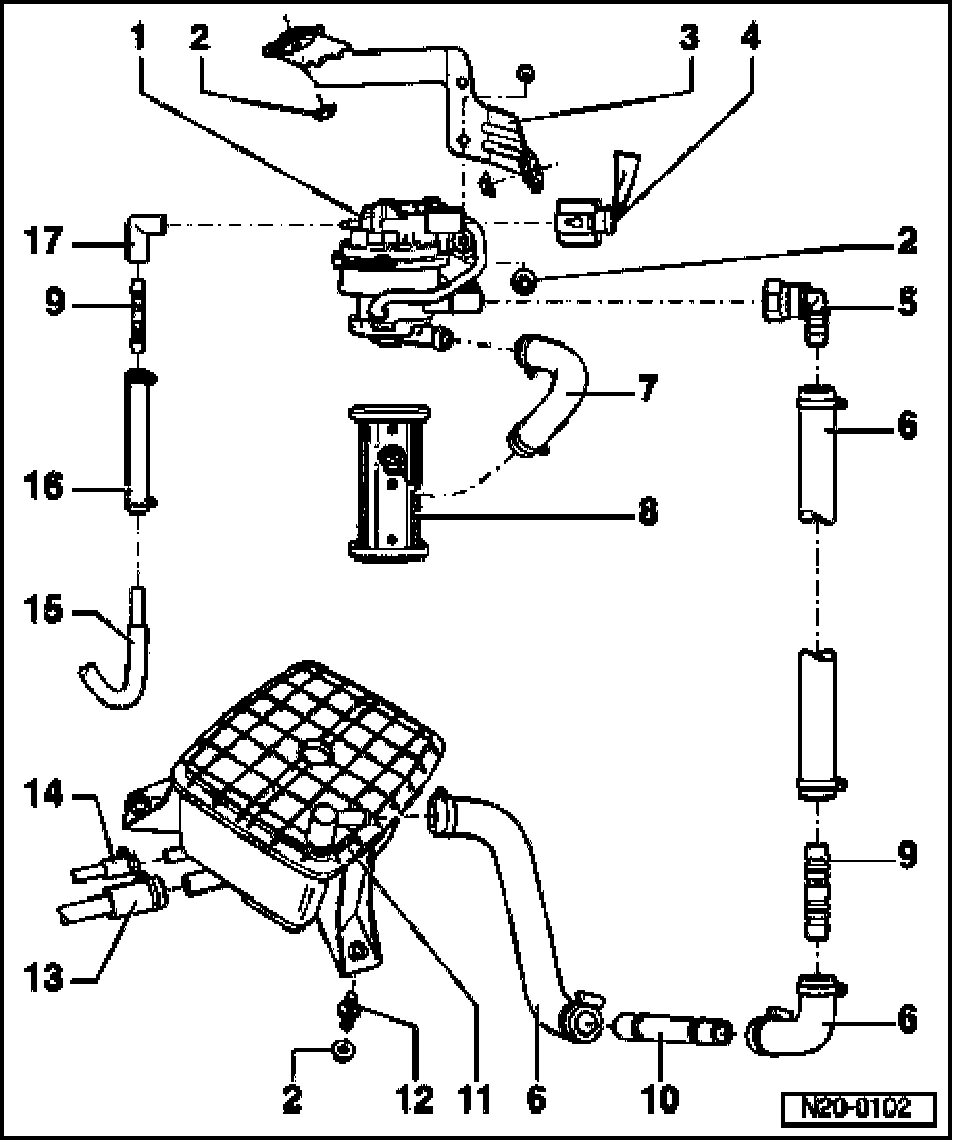

Parts of EVAP canister system, removing and installing







1 Leak detection pump (LDP) -V144-*
- Under wheelhousing liner in rear left wheelhousing
2 10 Nm
3 Bracket for diagnostic pump
4 Connector
- black, 3-pin
5 Clutch
- Check for secure fitting
- To disengage, squeeze together at front
6 Connection hose
- Pressure side
7 Connection hose
- Intake side
8 Air filter for diagnostic pump
9 Connecting piece
10 Connection tube
11 EVAP canister
- In spare wheel well at vehicle floor
12 10 Nm
13 To Evaporative Emission (EVAP) canister purge regulator valve
- In engine compartment at air filter
- Check for secure fitting
- secure with spring type clamps
14 Vent line
- Filler ventilation
- Check for secure fitting
- secure with spring type clamps
All Wheel Drive (AWD) vehicles:
- from breather valve at fuel tank, item 6
Front Wheel Drive (FWD) vehicles:
- from change-over valve at fuel tank, item 10
15 Vacuum line
- to throttle valve control module, item 9
16 Connection hose
- Vacuum side
17 Angled connector.
