Oil Pump, Servicing

01E Manual Transmission

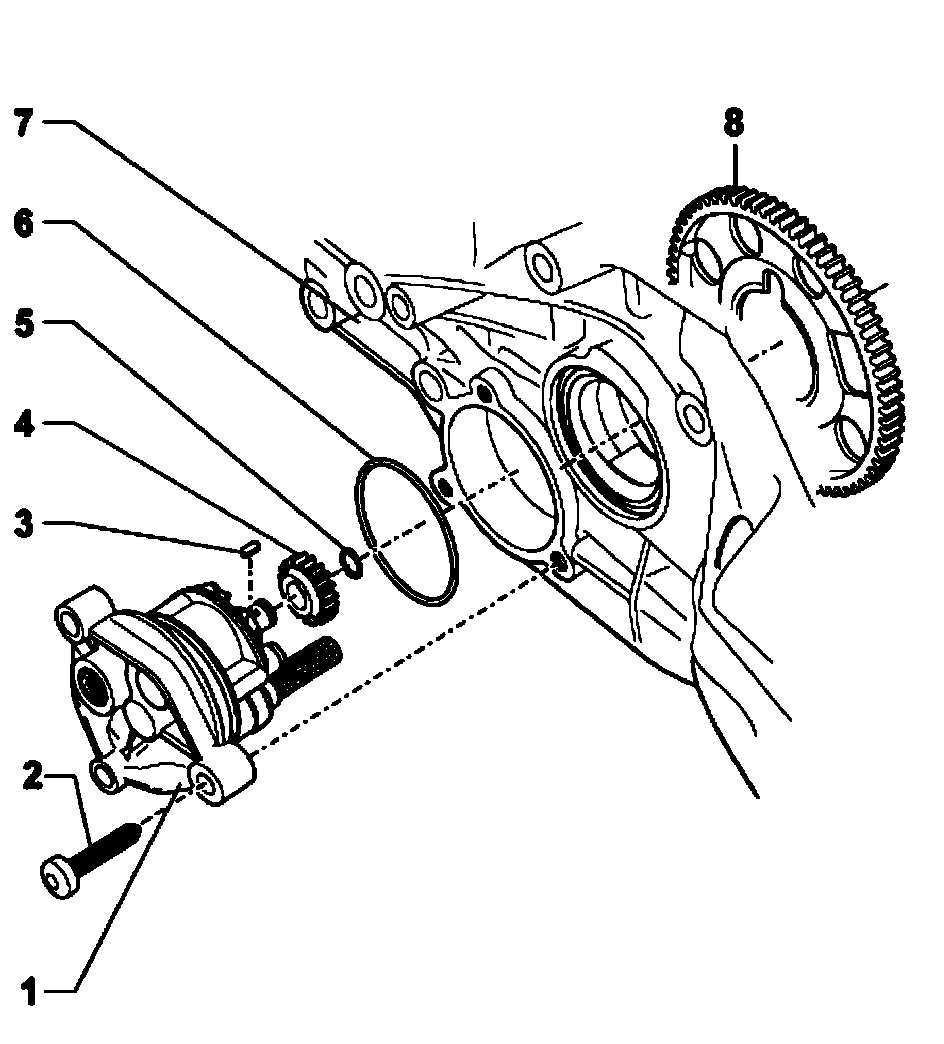

Oil pump, servicing
1. Oil pump
2. Torx screw, 25 Nm
3. Parallel key
4. Small input gear
^ Installed position: shoulder toward oil pump
5. Securing clip
6. O-ring
7. Transmission housing
8. Large input gear
