Scan Tool Testing - 01V, 5 SPD. A/T (OBD)
>>
Transmission With Hydraulic Regulation -E17-
>>
Test Tables
>>

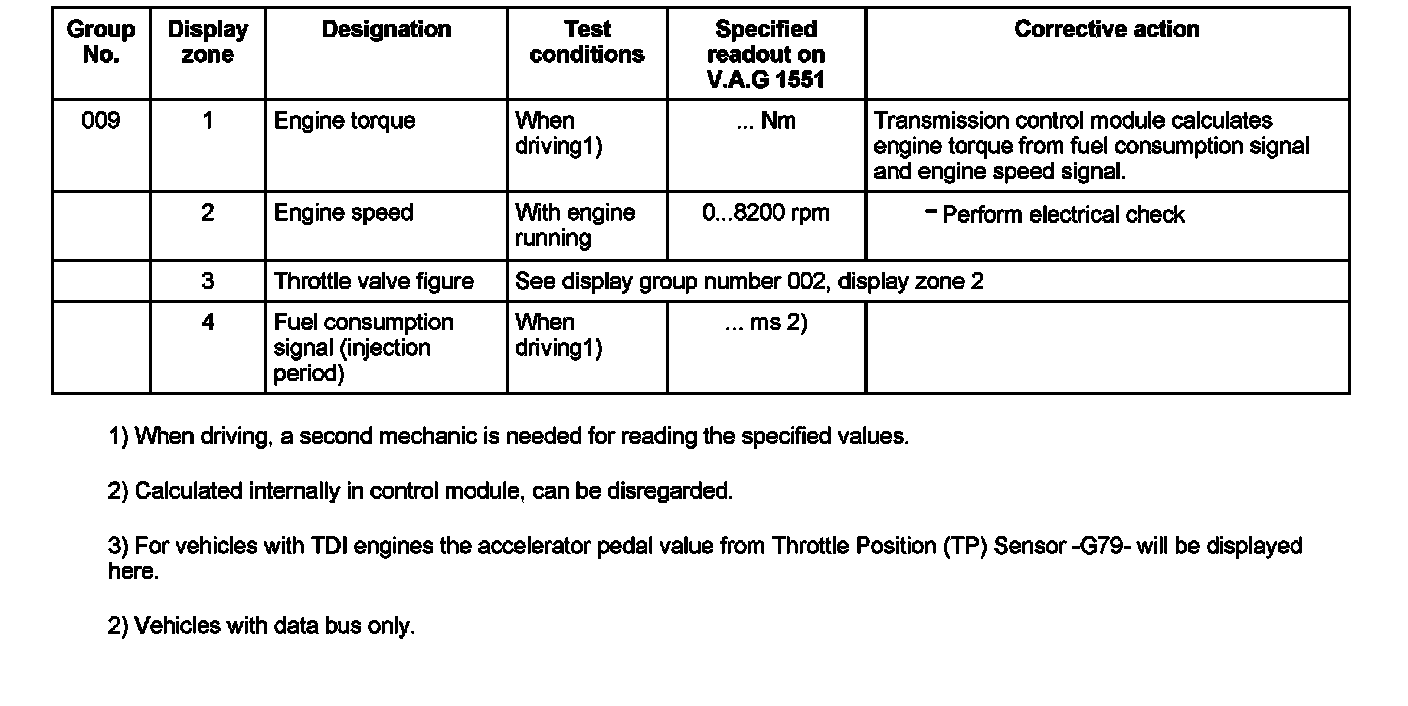

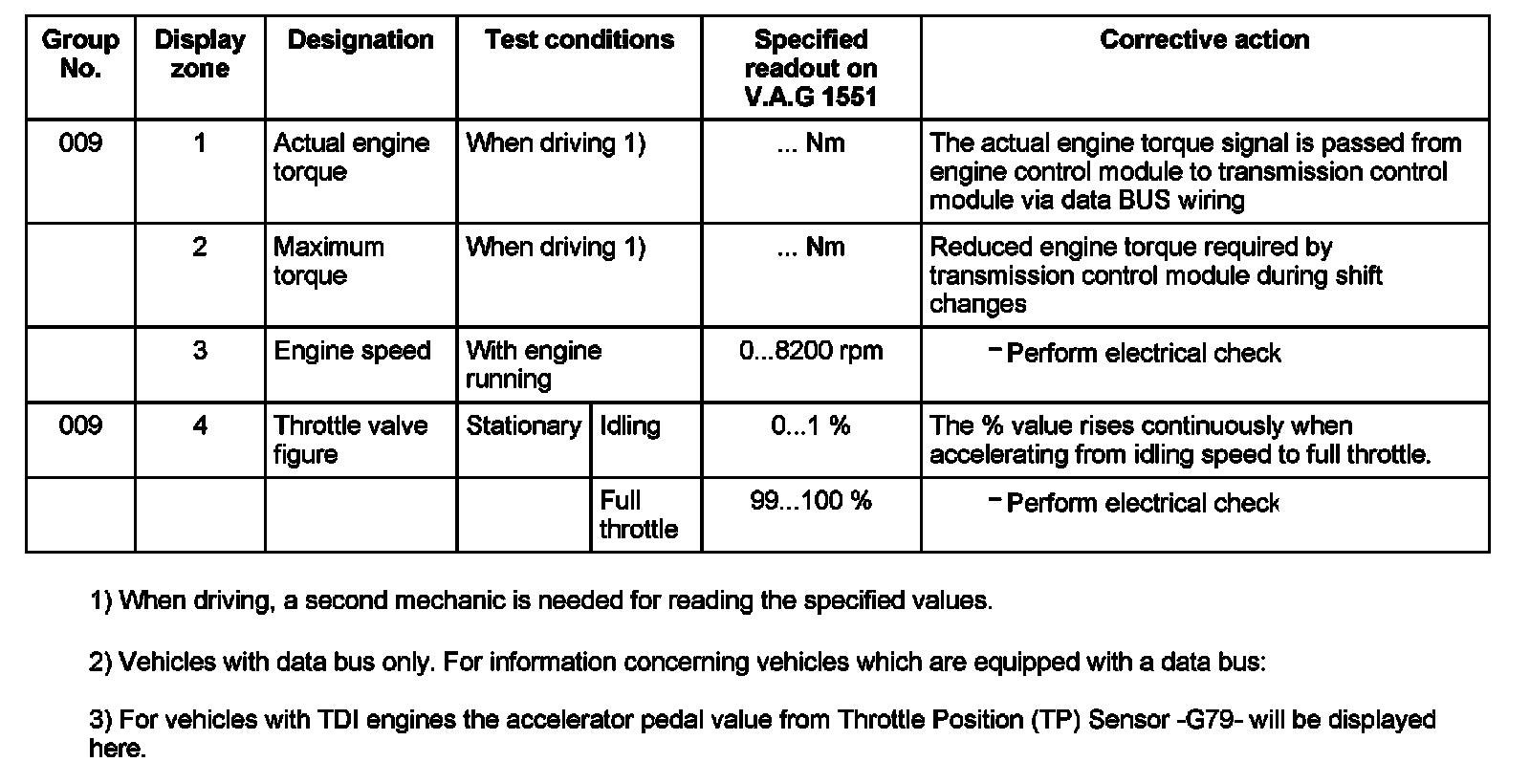

Display Group 009
Display Group 009
Display Group Number 009, Display Field (1-4):
Display Group Number 009, Display Field (1-4):
