Cellular Phone Microphone: Locations

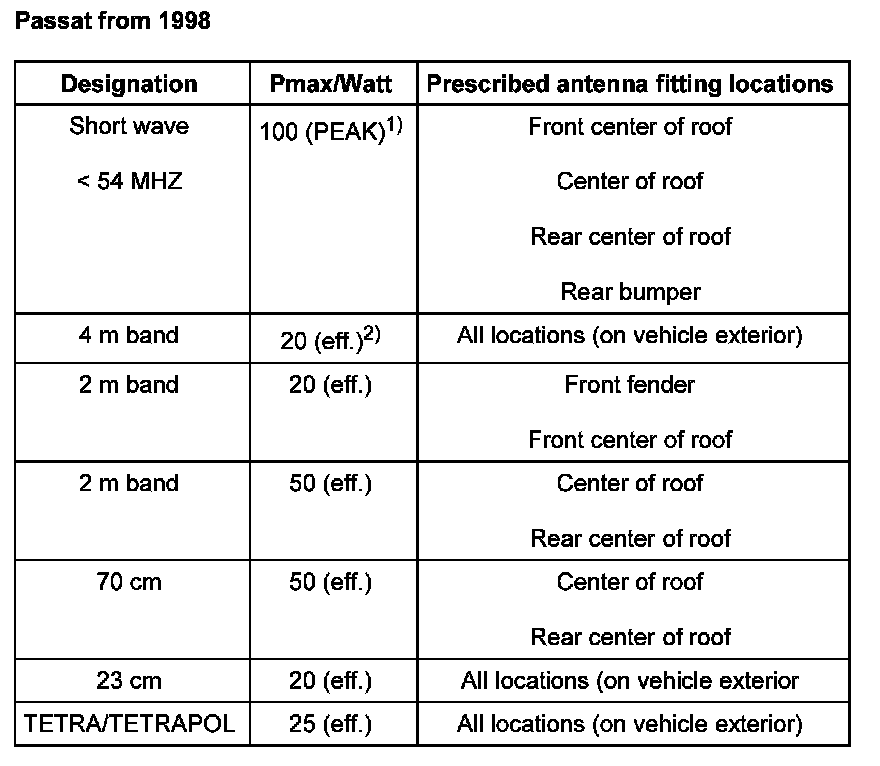

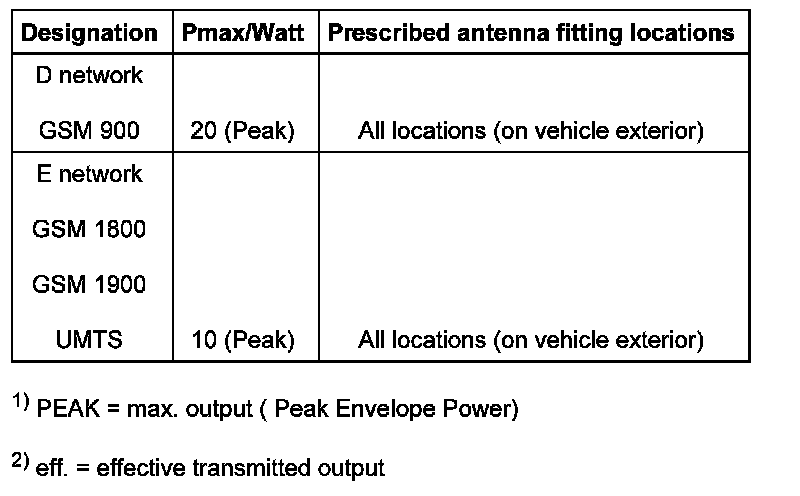

Transmitted Output And Antenna Installation Locations










NOTE: Deviations from these guidelines (location of antenna, frequency, output) are only permitted in special isolated cases after a single-case test carried out by the EMV center of VW AG in Wolfsburg.

EMV = Electro-magnetic compatibility
