Valve Body: Locations

Electrical/Electronic component locations

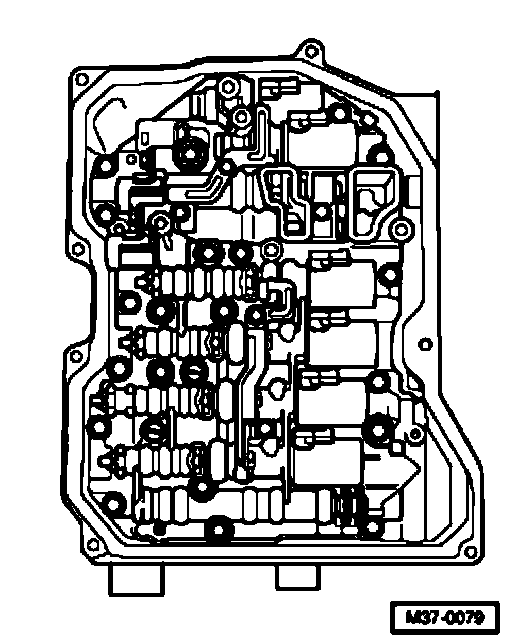

Fig. 2 Valve body
Location: bolted to underside of transmission and covered by oil pan.
The following are secured to the valve body:
Solenoid valves -N88- and -N89
Pressure regulating valves -N90-, -N91-, -N92-, -N93-, -N282- and -N283-.
