Shift Mechanism Frame (Assembly Overview), Disassembling and Assembling

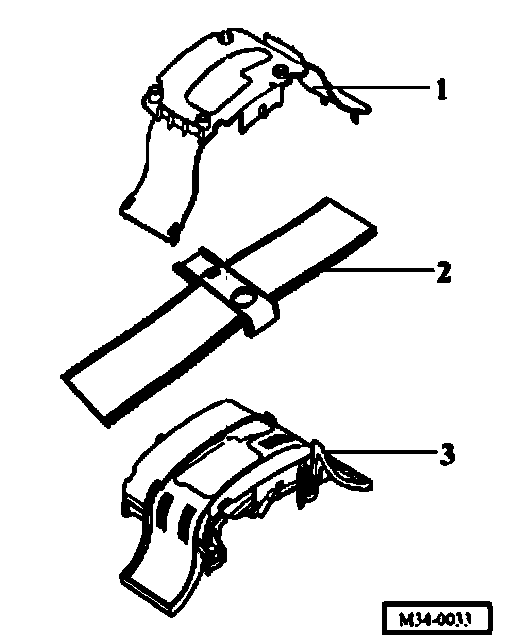

Shift mechanism frame (assembly overview), disassembling and assembling





1. Frame - upper part
2. Cover strip
3. Frame - lower part
