Rear Lid, (Jetta Wagon), Assembly Overview

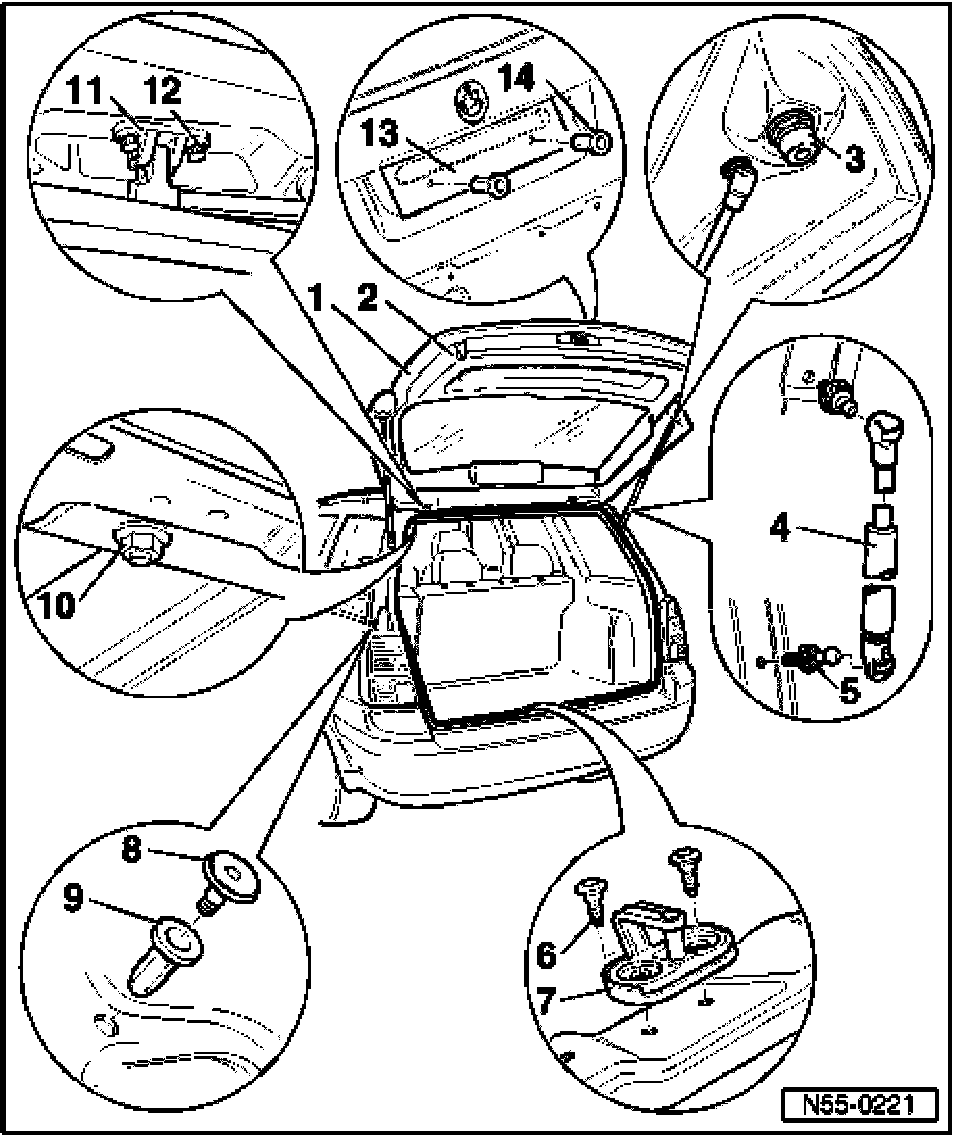

Rear Lid (Jetta Wagon), Assembly Overview







1 Rear lid
- Gap dimension Body panel gaps; Body, rear
2 Trim
- Removing and installing
3 Rubber stop
4 Gas-filled strut
- Venting gas
5 Ball stud
- 10 Nm
6 Bolt
- 22 Nm
7 Closure plate
- Adjusting - within elongated holes
- Gap dimension Body panel gaps; Body, rear
8 Cap
9 Pop rivet
10 Hex nuts
- 22 Nm
11 Hinge
12 Bolt
- 10 Nm
13 Identification plate
- Press on only on hatched area
- Replacement part has two foils. First foil covers adhesive surface, second must be removed after installing.
14 Internally threaded pop rivet
- Tighten using Pop rivet tongs V.A.G1765A
