Engine Oil: Service and Repair

Engine oil specifications

Only use engine oil conforming to VW standard 505 01.

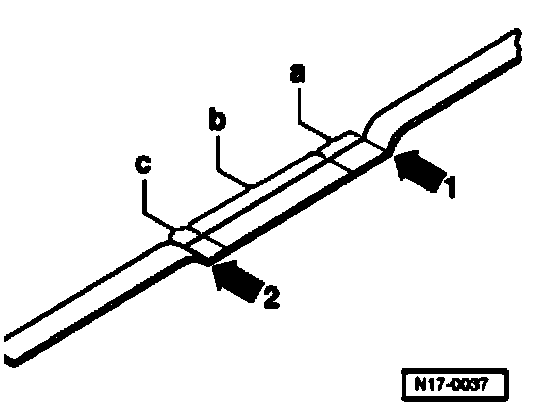

Markings on oil dipstick
1. Max. mark
2. Min. mark
a - Area above hatched field up to Max. mark- Do not add engine oil!
b - Oil level within hatched field- Engine oil may be added.
c - Area from Min. mark up to hatched field- Add max. 0.5 liter of engine oil!
