Poly V-belt, removing and installing

Caution: Observe safety notes.

Special tools, testers and auxiliary items required

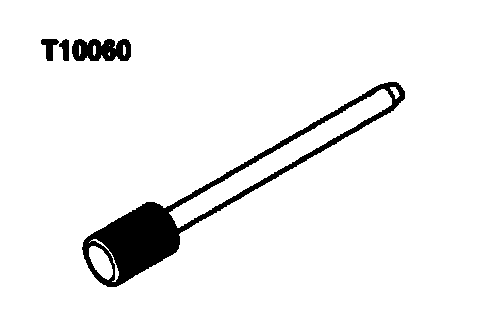

- Pin T10060

Removing
- Remove right side sound insulation tray:





- Mark direction of rotation of poly V-belt.

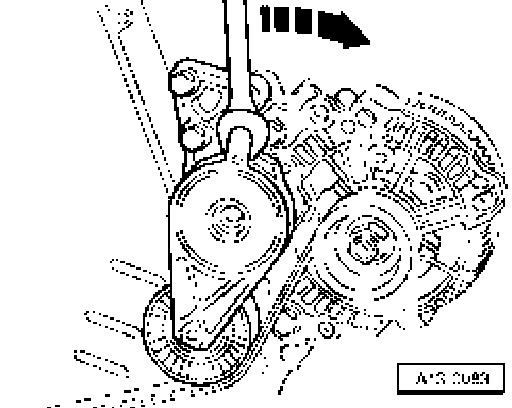

- Turn tensioning device in direction of arrow to relieve tension on poly V-belt.

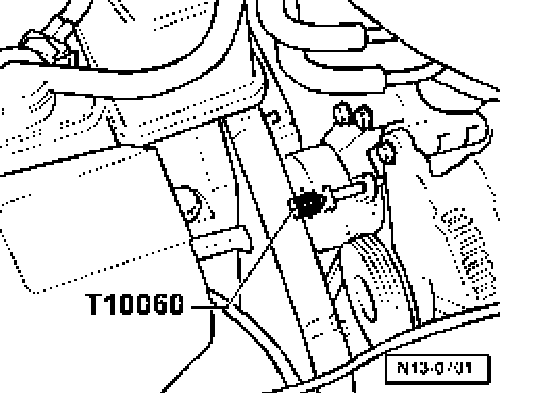

- Lock tensioning element with retaining pin T1 0060
- Remove poly V-belt.

Installing
- Installation is performed in the reverse sequence of removal.

Note:
^ Before installing the poly V-belt, ensure that all ancillaries (Generator, air conditioning compressor, power steering pump) are secured tightly.
^ When installing the poly V-belt, check the direction of belt rotation and for proper seating of the belt in the pulleys.





^ For vehicles without air conditioning, put the poly V-belt over the Generator pulley last.
^ For vehicles with air conditioning, put the poly V-belt over the air conditioning compressor pulley last.

After completing repairs always:
- Start engine and check belt running.

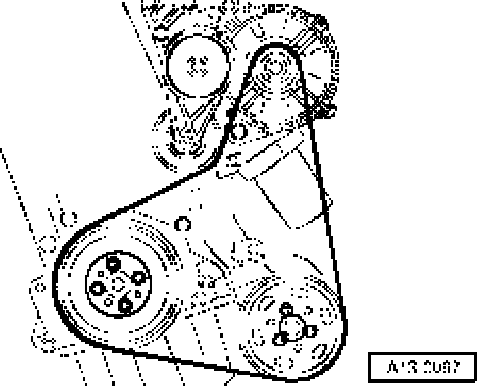

- Belt drive for vehicles without air conditioning

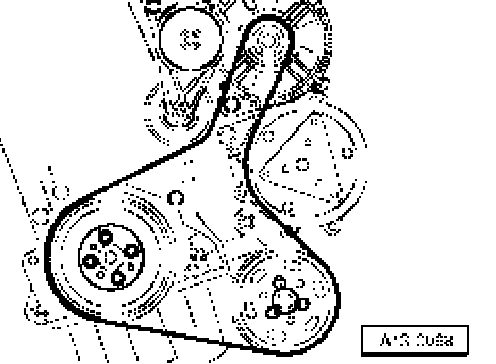

- Belt drive for vehicles with air conditioning
