Without A/C

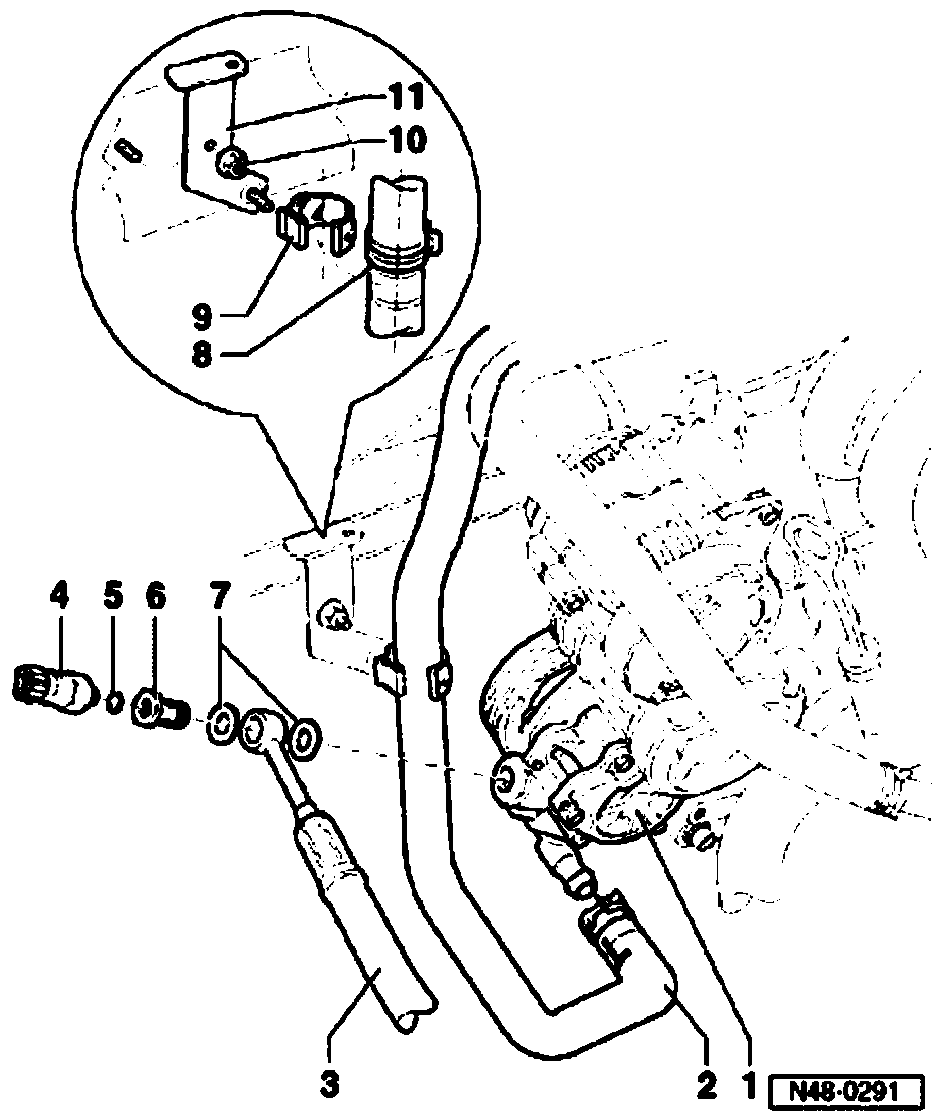

Securing pressure line and intake hose on vehicles with 1.9 ltr. TDI -engines without A/C





VR5 and VR6 with/without air conditioner
1. Power steering pump
2. Intake hose
3. Pressure line
4. Pressure switch
^ Switches at 40 bar
^ Tighten to 15 Nm (11 ft. lbs.)
5. O-ring
^ Always replace
6. Banjo bolt, 38 Nm (28 ft. lbs.)
7. O-ring
^ Always replace
8. Colored marks on intake hose
^ White or yellow ring must seat within retainer - Item - 9-.
9. Bracket
10. Hex nut
11. Bracket
