Audio System - Poor Am Band Reception

Condition

Radio, Poor AM Reception
Poor AM reception.





91 06 09 Oct.26, 2006 2010546 Supersedes T.B.Group 91 number 04-03 dated March 17, 2004 due to inclusion into ElsaWeb.

Technical Background
May be caused by roof mounted antenna.

Production Solution
Lengthen antenna mast.

Service
Measure antenna mast length.

If mast length is approximately 450 mm (17.75 in.):
- Replace roof mounted antenna assembly (base and mast) with Part No: 1J0035505E.See Repair Manual Group 91, Radio, Telephone, Navigation, Trip computer Antenna.

Tip: Part number(s) are for reference only.Always see ETKA for the latest part(s) information.

If mast length is approximately 540 mm (21.25 in.):
- Additional reception diagnosis is required.

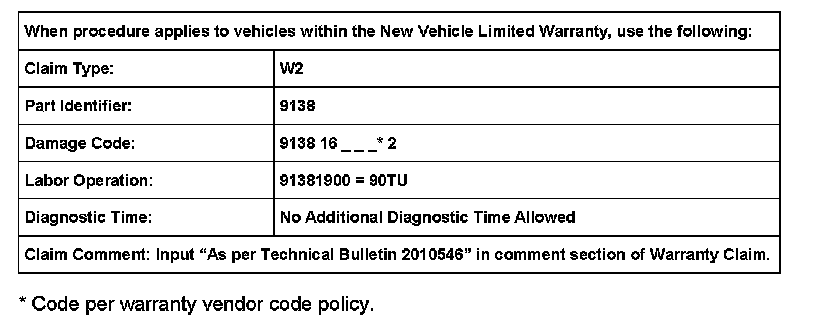

Warranty

Required Parts and Tools





No Special Tools required.
