Stabilizer Bar: Service and Repair

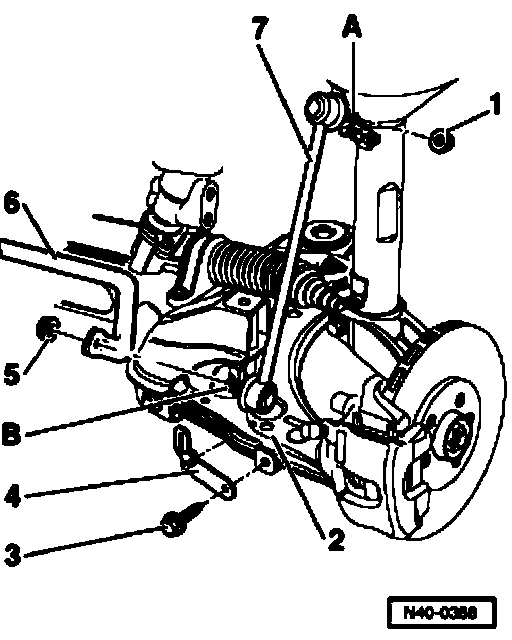

Modified mounting for stabilizer bar
Affected vehicles:
^ Vehicles with all-wheel drive

1 - Nut, 90 Nm
2 - Control arm
3 - Hex bolt, 15 Nm (11 ft. lbs.) plus an additional 1/4 turn 90°
4 - Bracket
5 - Nut, 90 Nm
6 - Stabilizer bar
7 - Connecting Link
A - Upper threaded pin





- Install ball joint with long thread - A - at top on spring plate.
B - Lower threaded pin
- Install ball joint with short thread - B - at bottom on stabilizer bar.
