Control Arm Bushing: Service and Repair

Control arm bonded rubber bushing, replacing

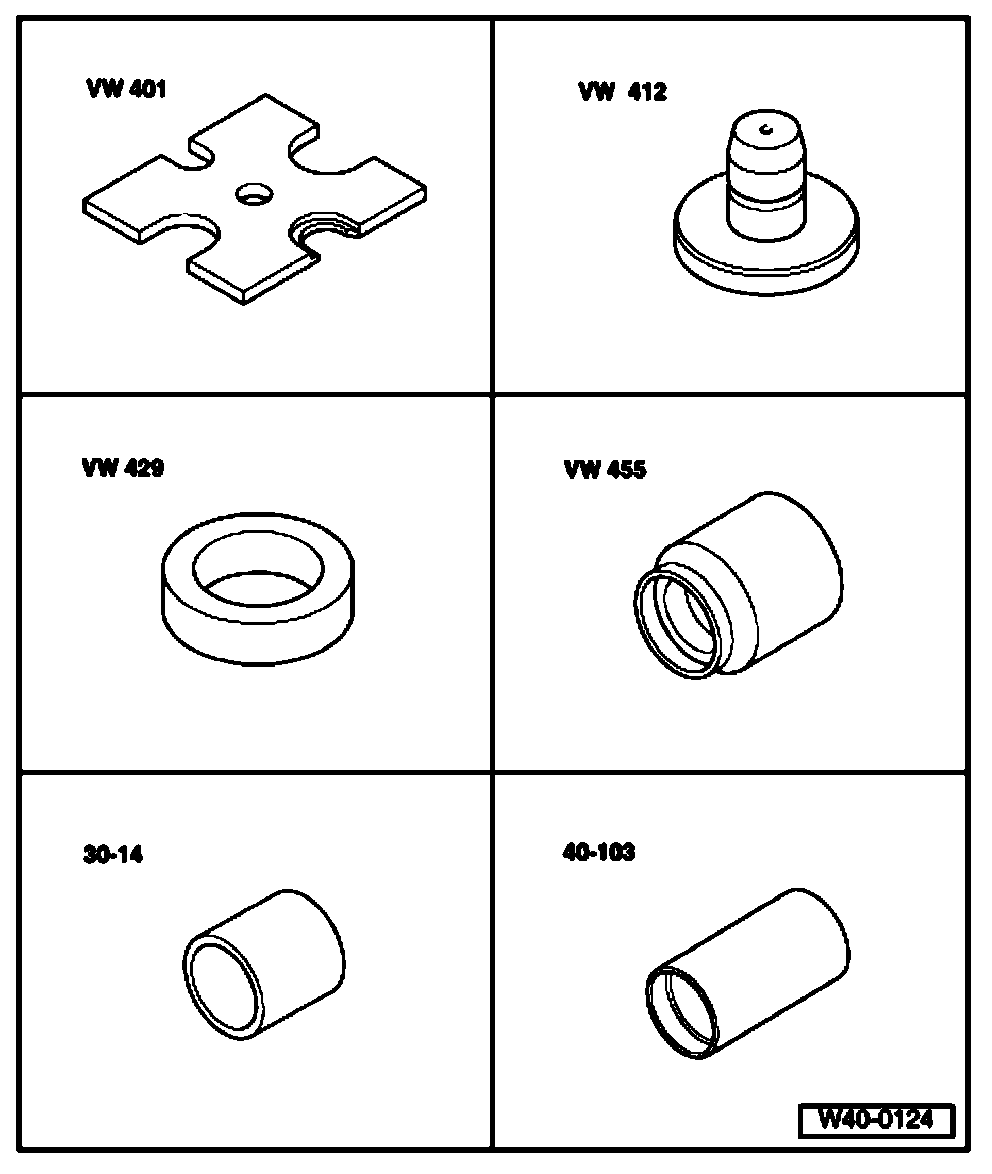

Special tools, testers and auxiliary items required
^ Thrust plate VW401
^ Punch VW412
^ Thrust ring VW429
^ Press sleeve VW455
^ Tube 30 -14
^ Support 40 - 103

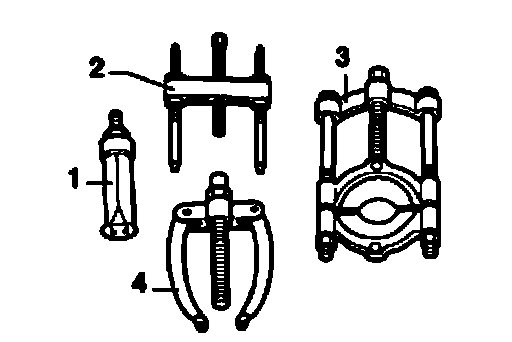

Special tools, testers and auxiliary items required
^ Thrust tube T10030/1





^ - 2 - Puller Kukko 18/1
^ - 3 - Separating device Kukko 17/1

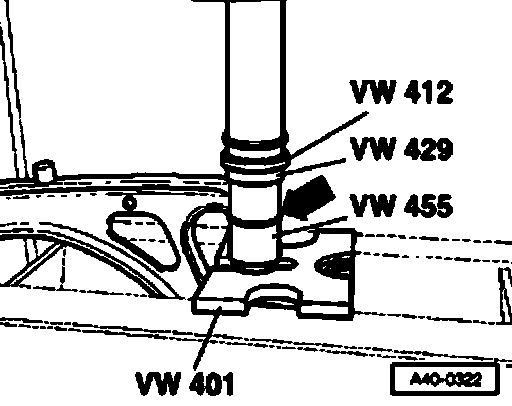

Pressing out front control arm bushing

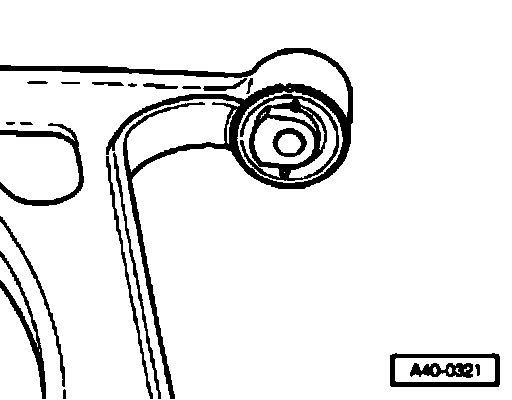

Installation position for control arm front bushing

Note: Use lubricant to press in the bonded rubber mounting e.g. lubricant G 294 421 A 1





Pressing in front control arm bushing





Pressing out/in control arm rear bushing

Bushing must be pressed in flush on the upper side.
