Power Steering Gear With Heat Shield (Vehicles With All-Wheel Drive), Assembly Overview

Power steering gear with heat shield (vehicles with all-wheel drive), assembly overview

For right-hand drive vehicles
Tightening torques for
^ Tie rod ball joint to wheel bearing housing
^ Lock nut on tie rod
^ Tie rod at steering gear
^ Steering gear to subframe
Are the same for left and right-hand drive steering gear





They are not shown on the following illustration.

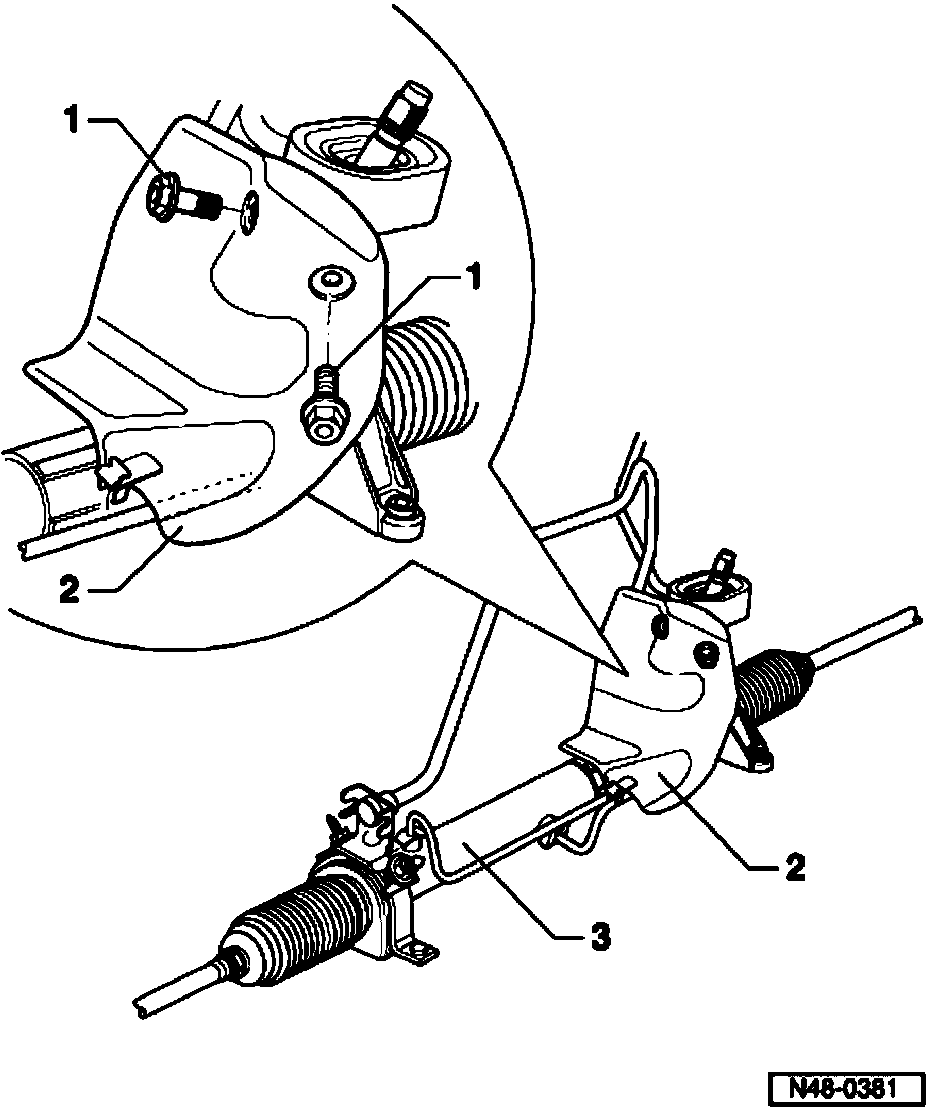

1. Hex bolt, 8 Nm (71 inch lbs.)
2. Heat shield
^ Clip is clipped on pressure line
3. Steering gear
